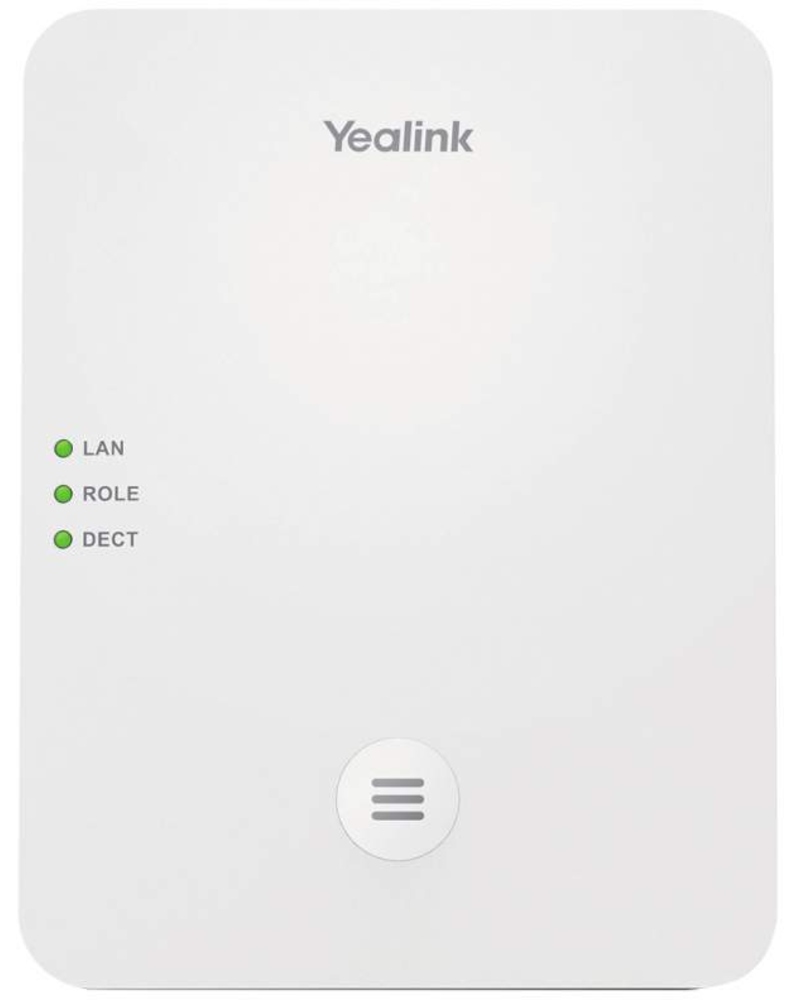

The Yealink DECT products bring scalability and increased mobility to business users, the DECT IP Multi-Cell System W80B provides a seamless handover and roaming solution, stable communication experience and simple deployment service covering multiple scenarios, including warehouses, hotels, 4S stores, offices, retail and other large spaces that need to use Multi-Cell solution. Yealink is dedicated to assist our users and partners benefit from our professional business communication solutions.
Easy Setup, Fast Deployment
The DECT IP Multi-Cell System provides easy setup for users and resellers. Even if you are in a non-multicast network environment, you can get the W80B base station's IP address directly from your phone to help you set up your system faster and easier. Yealink’s DECT IP Multi-Cell Deployment Toolkit quickly confirms the correct location of any W80B base station, only through some steps of measurement, installation and configuration, that can easily set up the system and plan large-scale deployments.
Seamless Roaming & Stability
As the DECT IP Multi-Cell System, it provides a seamless roaming and handover solution that allows users to move freely in large indoor or outdoor spaces. The system supports up to 30 base stations and 100 handsets, wireless users could enjoy by flexibility, seamless roaming and handover, HD audio quality and clear communication.
All in One, Up to 100 Parallel Calls
The DECT IP Multi-Cell System W80B supports DM, DM-Base, and Base mode. The small system offers 10-Base networking, one of which switches to DM-Base mode while the rest switch to Base mode. The system supports the registration of up to 50 handsets and 50 parallel calls. The medium system supports 30-Base networking, one of which switches to DM mode while the rest switch to Base mode. The system supports the registration of up to 100 handsets and 100 parallel calls.
Easy Access to Multiple Phone Books
The system offers easy access to multiple phone books, including Local Directory, Remote Phonebook, LDAP, and XML Phonebook. Additionally, it is broadly compatible with PBX contacts, including 3CX contacts and BSFT XSI contacts.
Specifications
Performance
Number of handsets supported (max)
30
Frequency range
1.8 - 1.9
GHz
Maximum range
300
m
Voice activity detection
Comfort noise generation (CNG)
Automatic gain control
CAT-iq
2.0
Number of VoIP accounts
100
Supported network protocols
SNTP/NTP, VLAN, SIP v1, SIP v2, UDP/TCP/TLS, DHCP
Security algorithms
HTTPS, SHA-256, SRTP, SSL/TLS
Voice codecs
AJB, CNG, G.726, G.729, PLC, VAD, iLBC
Compatible products
Yealink W53H/W56H
Call management
Conference call
Number of parallel conferences
3
Anonymous call
Anonymous call rejection
Call waiting
Call forwarding
Call transfer
Call hold
Do not disturb function
Ports & interfaces
Ethernet LAN
Ethernet LAN (RJ-45) ports
1
Design
Product colour
White
Power
Input voltage
100 - 240
V
Power over Ethernet (PoE)
Weight & dimensions
Dimensions (WxDxH)
130 x 100 x 25.1
mm
Weight
2560
g
(5.64 lbs)
Package width
174
mm
Package depth
180
mm
Package height
63
mm
Package weight
3130
g
