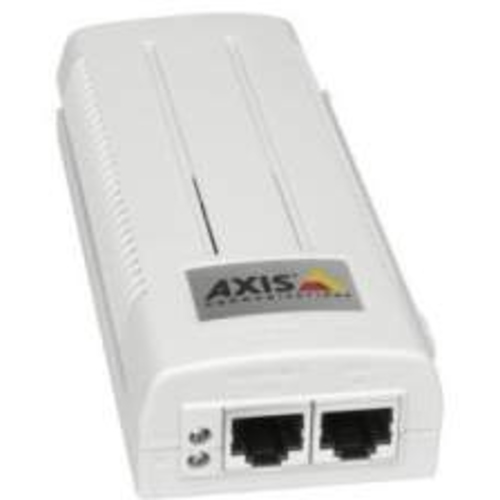

Axis 02044-001 network splitter Power over Ethernet (PoE)

SKU

15_02044-001_1

Be the first to review this product

$64.00

Visit our Axis Store

MPN

02044-001

UPC

331021071360

For network device with no built-in support for PoE

A splitter is used to split the power and data in an Ethernet cable into two separate cables, which then can be connected to a network device that has no built-in support for Power over Ethernet (PoE). The PoE Splitter 5 V is IEEE 802.3af compliant and can be powered from any Axis midspan or PoE switch. The splitter is easily installed, with no need for system reconfiguration.

Specifications

Performance

Networking standards

IEEE 802.3af

Design

Product colour	Black
Cable length	0.3 m
Plug and Play
Certification	EN 55024, EN 55032 Class A, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), RCM AS/NZS CISPR 32 Class A

Ports & interfaces

Ethernet LAN (RJ-45) ports

Power

Power over Ethernet (PoE)
Output voltage	5 V
Output power	12.5 W
Output current	2.5 A

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 65 °C

Weight & dimensions

Width	55 mm (2.15 ")
Depth	100 mm (3.9 ")
Height	28 mm (1.09 ")
Weight	100 g (0.22 lbs)
