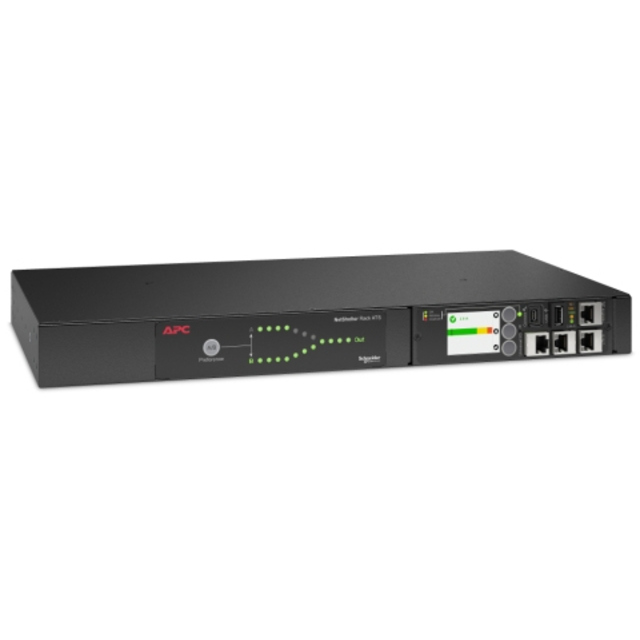

APC AP4453A Automatic Transfer Switch (ATS)

In stock

SKU

9_AP4453A_1

Be the first to review this product

$1,478.00

Visit our APC Store

MPN

AP4453A

UPC

731304432531

About this item

2U, NEMA L5-30P 24 A 2P + E, 2880VA, 30A, 108 - 132VAC, 50/60Hz, 432x236x88 mm, 6.33 kg

Description
Specifications

Rack-Mountable

Occupys only 2U of valuable rack space. Puts the power where it is needed most
- in the rack near the equipment.

Information Displays

Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.

Transfer time <10ms

Industry leading transfer time to ensure seamless ride through in the event of a primary power source failure.

Dual Input Power Sources

Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.

10 kAIC Overcurrent Protection

Provides protection in the event of a significant overcurrent event.

Color LCD display

Provides more robust and intuitive local control and manageability.

Network Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web and SNMP. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.

Specifications

Power

Input operation voltage (min)	108 V
Input operation voltage (max)	132 V
AC input frequency	50/60 Hz
Input current	30 A

Design

Form factor	Rackmount
Rack capacity	2U
Product colour	Black
Display	LCD
Certification	EN 55022 class A, FCC part 15 class A

Ports & interfaces

AC outlets quantity	16 AC outlet(s)
AC outlet types	NEMA L5-20R

Operational conditions

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95 %

Weight & dimensions

Width	432 mm (16.85 ")
Depth	236 mm (9.2 ")
Height	88 mm (3.43 ")
Weight	6330 g (13.96 lbs)
