Axis C1111-E 2-way Black

Out of stock
SKU
15_02698-001_1
$633.00
MPN
02698-001

About this item
7W Classe D, 120Hz-20kHz, 93 dB, 12.95W PoE

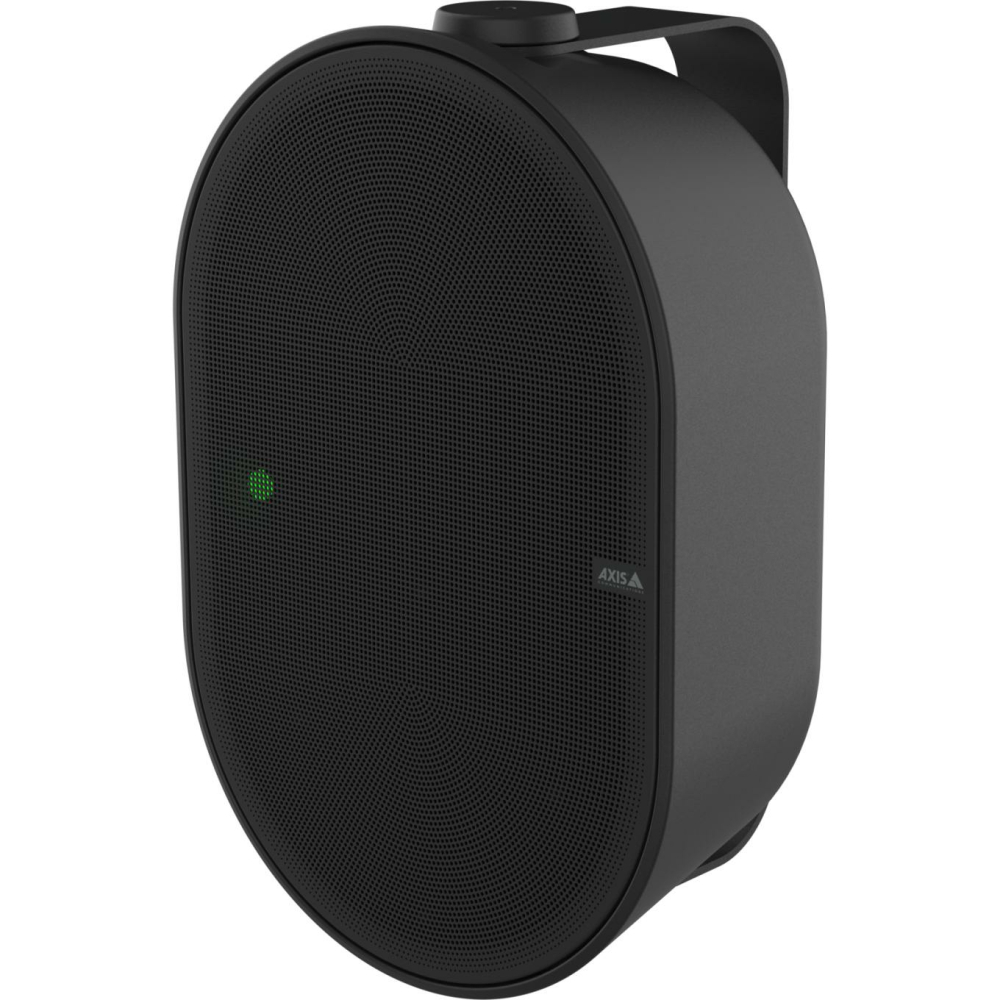

AXIS C1111-E Network Cabinet Speaker


Broadcast clear live or prerecorded voice messages for business efficiency, asset protection, ads, or more with this stylish all-in-one speaker system. It’s also suitable for background music.


Smart and easy to integrate


This smart network speaker combines hardware and software in a single cost-effective unit. Built on an open platform, it’s made to work with your systems, from your VMS to your VoIP (using SIP) to the analytics you depend on. The built-in microphone supports remote health testing and two-way audio with full duplex and echo cancellation. Plus, AXIS Audio Manager Edge software comes built in, so you can schedule content, set user permissions, and reconfigure zones from anywhere. For coordinating audio across multiple sites, a standard version of our multisite management software, AXIS Audio Manager Center, is also available free of charge.


Good sound for all your audio needs


Enjoy dependable audio, starting the moment you take the speaker out of the box. A preconfigured digital signal processor (DSP) ensures clear voice and background music every time. Live, scheduled, and event-triggered voice messages help you improve business efficiency, keep people safe and informed, and protect your property. The same system also lets you create the right atmosphere with background music. And with flexible audio zoning and content prioritization, you can count on your messages getting to the right place at the right time.


Easy, flexible installation


It doesn’t get much easier. A single network cable provides both power and connectivity using Power over Ethernet, so you don’t need to fuss with dedicated audio cabling. Its all-in-one design saves space and eliminates the need for external amplifiers or other audio equipment, and the click-in mounting process supports a safe and easy installation. Finally, it’s got a visual design worth showing off – in any setting. Sleek and stylish, it’s available in white and black, and it’s suitable for mounting on walls, ceilings, and poles, both indoors and in semi-protected outdoor installations – for example, under eaves.


Specifications
Loudspeakers
Speaker placement Wall-mountable
Speaker enclosure Closed
Recommended usage Intercom system
Number of drivers 1
Amplifier Built-in
Speaker type 2-way
Audio
Frequency range 120 - 20000 Hz
Sound pressure level (max) 93 dB
Beamwidth 120 - 130 u00b0
Design
Product colour Black
Housing material Aluminium
LED indicators Y
Amplifier
Amplifier class D
Amplifier output power 7 W
Ports & interfaces
Microphone in
Card reader integrated
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Power
Power source type PoE
Power consumption (typical) 12.95 W
Sustainability
Sustainability certificates REACH, RoHS
Doesn't contain PVC/BFR
Operational conditions
Operating temperature (T-T) -30 - 50 °C
Storage temperature (T-T) 10 - 100 °C
Operating relative humidity (H-H) -40 - 65 %
Storage relative humidity (H-H) 5 - 95 %
Weight & dimensions
Width 253 mm (9.87 ")
Depth 129 mm (5.03 ")
Height 164 mm (6.4 ")
Weight 2200 g (4.85 lbs)
Packaging content
Quick start guide
Other features
Audio formats supported AAC-LC, ADPCM, G.711, G.726, WAV
International Protection (IP) code IP55
REACH, RoHS
Note: Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for 02698-001 by Axis you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
