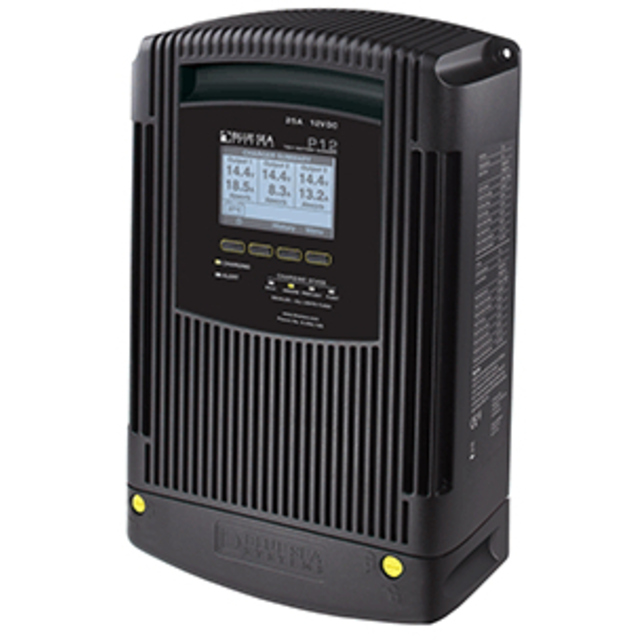

Blue Sea 7532 P12 Gen2 Battery Charger - 40A - 3-Bank

P12 Gen2 Battery Charger
- 40A
- 3-Bank

Features:

• Four stage, three output, dry mount design, for use in harsh environments.
• Rugged, finned aluminum case
• PreFloat™ stage prevents over charging
• Power factor corrected for efficient use of AC
• Intuitive diagnostic screens
• User defined charge profiles and customizable settings
• Provides charging for up to three battery banks
• Large, bright display
• Multi-language: English, French, German, Italian, Spanish
• Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery
• Battery Temperature Compensation
  - adjusts charge voltage based on battery temperature
• AC over and under voltage shut down and automatic restart
• Over and under battery temperature protection
  - charger will not operate if battery temperature rises above or falls below a set value
• DC over voltage and reverse polarity protection
• Surge and short circuit protection

Specifications:

• Total Output Current: 40A
• Input AC Current: 7.5A @ 100V AC / 3.75A @ 200V AC
• Maximum Output Voltage: 16V DC
• Nominal Voltage: 12V DC
• Ignition Protected: Yes
• Number of Outputs: 1 negative / 3 positive
• Universal AC Input Voltage: 90-265V AC
• AC Input Frequency: 45-65Hz
• Output Voltage Accuracy: 0.05V
• Typical Float Voltage:13.5V DC
• Minimum Operating Temperature: -20° C
• Maximum Operating Temperature: 70° C
• Minimum Storage Temperature: -30° C
• Maximum Storage Temperature: 80° C
• Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead)
• Recommended for Battery Bank Sizes: 440Ah Maximum Example: 4 x Group 31 / 60Ah Minimum Example: 2 x Group 31
• Warranty: 5 Year
• Height: 13.03" (330.96 mm)
• Width: 8.46" (214.88 mm)
• Depth: 3.66" (92.96 mm)
• Weight: 13.00lb (5.9 kg)
