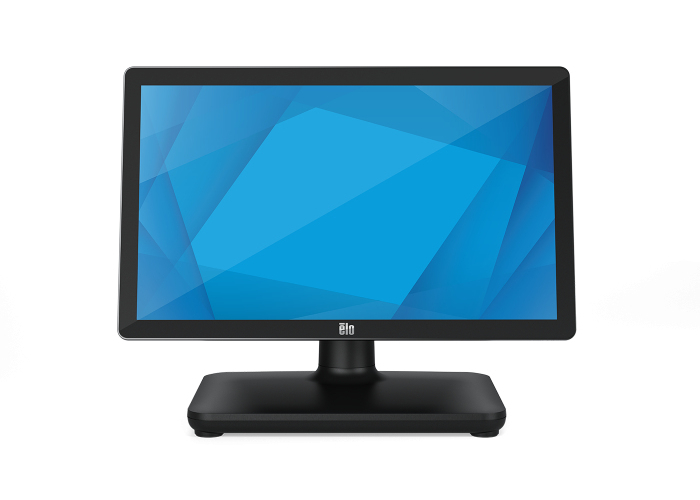

Elo Touch Solution E417915 POS system All-in-One 2.1 GHz i5-8500T 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen Black

In stock
SKU
26_E417915_1
$3,076.00
Eligible for Free Shipping & Free Returns
MPN
E417915
About this item
EloPOS System, 21.5'' diagonal, Active matrix TFT LCD (LED) 1920x1080, Intel Q370 Express, Intel Core i5-8500T, Intel UHD Graphics 630, 16GB 2400MHz DDR4 SO-DIMM, 256GB M.2 SATA SSD, Wi-Fi 802.11 a/b/g/n/ac 2.4/5GHz, Bluetooth 5.0, Windows 10, Stand & I/O Hub

EloPOS™ System

Modern. Modular. Made for Retail. The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 21.5-inch touchscreen display, choice of Intel’s 8th generation processors and an integrated expansion hub to connect the peripherals you need
- whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.


Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.


Connections. Connections. Connections.

The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.


Configure Your Solution

EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system,and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact.


Add a Customer-Facing

Display with Ease The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display
- providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.


Elo Edge Connect™ Lets You do More!

Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!


Windows or Linux. You Choose.

EloPOS utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system. For added flexibility, the EloPOS offers models with no OS
- all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, allowing businesses to get the solution best-suited for them.


Retail-Hardened

Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare options
- making EloPOS the ideal product for point of sale applications.
Specifications
Display
Display diagonal 21.5 "
Display resolution 1920 x 1080 pixels
Touchscreen
Display type LCD
Contrast ratio (typical) 1000:1
Viewing angle, horizontal 178 u00b0
Viewing angle, vertical 178 u00b0
Display brightness 212.5 cd/m²
Display number of colours 16.78 million colours
Response time 14 ms
Touchscreen technology Projected capacitive system
Aspect ratio 16:9
Processor
Processor frequency 2.1 GHz
Processor family Intel Core i5-8xxx
Processor model i5-8500T
Processor cores 6
Processor cache 9 MB
Processor threads 6
System bus rate 8 GT/s
Motherboard chipset Intel Q370
Memory
Internal memory 16 GB
Internal memory type DDR4-SDRAM
Maximum internal memory 32 GB
Number of memory slots 2
Memory slots type SO-DIMM
Memory clock speed 2400 MHz
Storage
Total storage capacity 256 GB
Storage media SSD
Number of storage drives supported 1
Solid-state drive capacity 256 GB
Solid-state drive interface Serial ATA
SSD form factor Half-Height/Half-Length (HH/HL) (CEM3.0)
Graphics
Graphics adapter manufacturer Intel
Graphics adapter UHD Graphics 630
Multimedia
Number of speakers 2
Networking
Ethernet LAN
Ethernet LAN data rates 10,100,1000 Mbit/s
Bluetooth
Wi-Fi
Wi-Fi standards 802.11a,802.11b,802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
USB 2.0 ports quantity 2
USB 3.0 (3.1 Gen 1) Type-A ports quantity 3
Powered USB
Line-out
Serial ports quantity 2
Design
Chassis type All-in-one
Product colour Black
Software
Operating system installed Windows 10
Power
AC input voltage 100-240 V
AC input frequency 50-60 Hz
Power consumption (typical) 81 W
Power supply 180 W
Operational conditions
Operating relative humidity (H-H) 0 - 35 %
Relative humidity 20 - 80 %
Operating temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 5 - 95 %
Certificates
Certification UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC
Ergonomics
VESA mounting
VESA mounting interfaces 75 x 75 mm
Mean time between failures (MTBF) 50000 h
Weight & dimensions
Width 416.4 mm (16.24 ")
Depth 84.7 mm (3.3 ")
Height 525.9 mm (20.51 ")
Depth (with stand) 257.8 mm
Weight 6000 g (13.23 lbs)
Weight (with stand) 8900 g
Other features
Intel
Note: Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for E417915 by Elo Touch Solution you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
