Two-Input Voice Alarm Dialer

Viking’s K-202-DVA is a fully programmable two-input, multi-number auto dialer, designed for emergency and non-emergency message notification. The K-202-DVA has two dry contact inputs, each of which can dial up to seven 32-digit phone numbers and play a message up to 1 minute in length specific to that input.
Messages can be recorded locally or remotely with a total message time for both inputs of two minutes. The K-202-DVA has call progress detection capability with normal and fast busy, call pickup, CPC and ring-no-answer detection. Programming is easily done with a Touch Tone phone.
Applications
Security/burglar/fire alarm notification
System alarm or equipment malfunction notification
Environmental warning notification
Contacting personnel via numeric pagers
Features
Non-volatile memory (no batteries required)
Stores up to seven 32-digit phone numbers (fourteen 32-digit numbers total)
2 minutes of record time (1 minute per input)
Programmable message repeat counter
Programmable lap counter
Two inputs programmable normally open or normally closed and enabled or disabled
Programmable ring delay for remote programming and alarm polling
Programmable qualifier timer for each input (time for an event to be qualified as an alarm)
Programmable resume timer for each input (time following reset for input to become active again)
Call progress detection
Programmable ringback limit for call progress
Remote security and access codes
Local or remote programming and recording

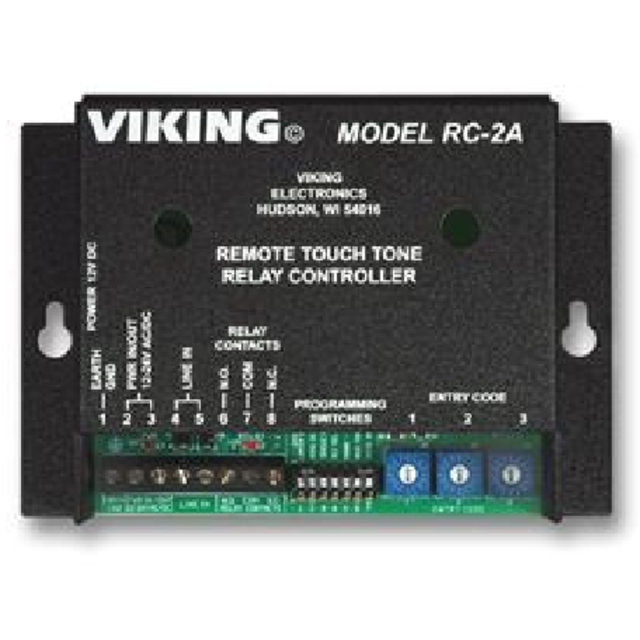

Compatible with the RC-2A and RC-3 remote DTMF controllers
Phone numbers may be programmed as pager numbers (no voice message played)
Specifications
Power: 120V AC/12V DC 500 mA, UL listed adapter provided
Dimensions: 133mm x 91mm x 44mm (5.25” x 3.6” x 1.75”)
Shipping Weight: 0.68 Kg (1.5 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% noncondensing humidity
Talk Battery: 12V DC
Touch Tone Dialing: 120 ms on/off, 50 ms on/off
CPC Detection Time: 320 ms minimum
Message Record Time: 2 minutes
Sampling Rate: 64 K (equivalent)
Input Detection Time: 80 ms with Qualifier Timer set to 0
Resolution Qualifier Timer: 1 second to 18 hours
Resolution Resume Timer: 1 second to 18 hours
Connections: (1) RJ11 jack for telco connection, (1) 4 position screw terminal block for inputs
