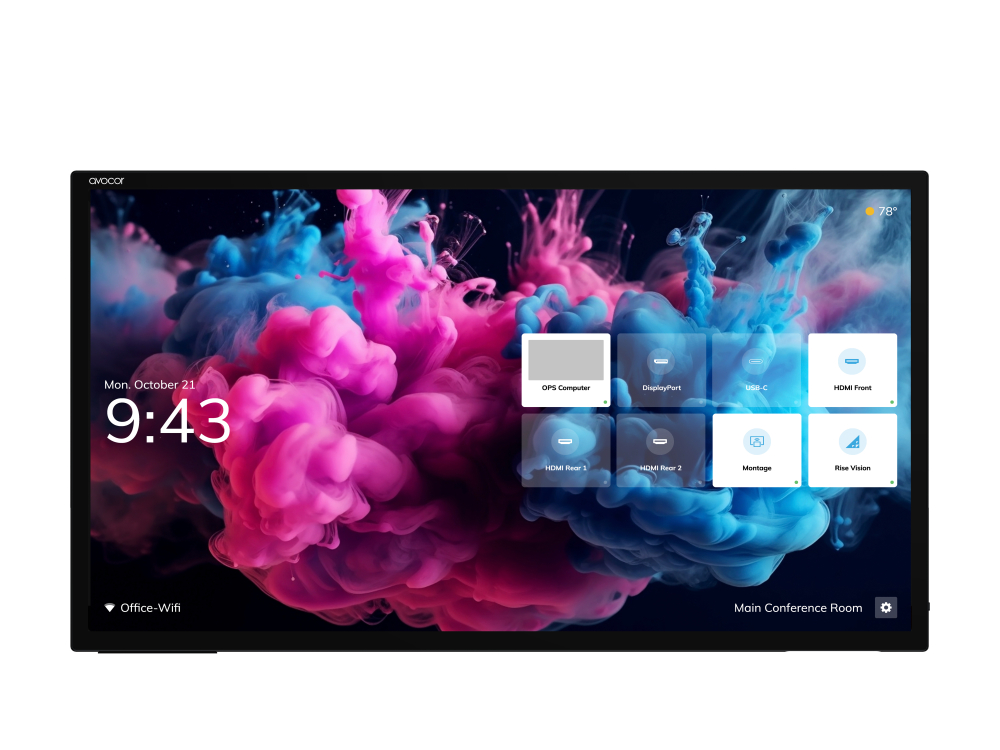

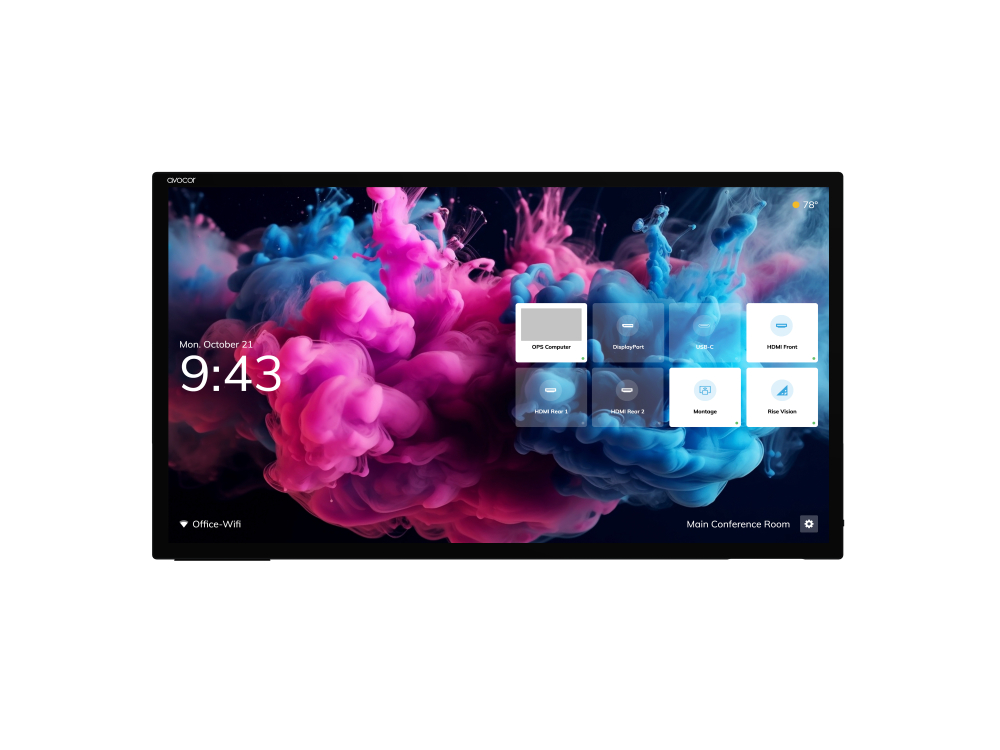

Avocor E series E-40 Series 86" 4K IR LED Interactive Display

SKU

14_AVE-8640_1

Be the first to review this product

$4,406.00

Visit our Avocor Store

MPN

AVE-8640

UPC

858323007592

Recommended Product

Avocor AVH-6520 H-Series - 65" 4K Pcap LED Interactive Display

$3,918.00

About this item

Avocor E-40 Series 86" 4K IR LED Interactive Display

Description
Specifications

The new and improved E series displays utilize the very latest optimized touch technology, that supports up to 20 points of touch using Avocor Intelligent Touch, and superior optically bonded glass technology providing a smooth and extremely accurate, low latency writing experience as well as object recognition.

The ability to easily switch between using a pen, finger, and palm creates a fluid collaborative environment for users in real-time, with an array of front-facing guest connectivity options now including a Type-C* connection along the Connect and Control bar, and features Avocor’s UiQ touch-enabled interface, enhancing the user experience and FUSE remote management, completely free-of-charge.

Specifications

Features

Touch technology

Multi-touch

Display

Display diagonal	86 "
Display brightness	400 cd/m²
Display number of colours	1.07 billion colours
Display resolution	3840 x 2610 pixels
Anti-glare screen
LED backlighting type	Direct-LED
Native aspect ratio	16:9
Maximum refresh rate	60 Hz
Touchscreen type	Infrared
Number of simultaneous touchpoints	20
Pen & touch differentiation
Palm erase

Technical details

Touchscreen
Viewing angle, horizontal	178 u00b0
Viewing angle, vertical	178 u00b0
Response time	8 ms

Projector

Contrast ratio (typical)

4000:1

Ports & interfaces

USB 2.0 Type-A hub ports quantity	2
USB 2.0 Type-B Touch ports quantity	2
USB connector type	USB Type-A, USB Type-B, USB Type-C
HDMI ports quantity	3
USB Type-C ports quantity	1
HDMI version	2.0
HDMI output ports quantity	1
USB Type-C DisplayPort Alternate Mode
USB Power Delivery up to	45 W
USB Power Delivery (revision 2.0)
DisplayPort version	1.2
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	2
Line-out
OPS slot	1
S/PDIF out port
RS-232 ports	1

Performance

Ambient light sensor
Handheld remote control

Audio

Built-in speaker(s)
Number of built-in speakers	2
Speaker power	60 W

Ergonomics

VESA mounting
VESA mounting interfaces	800 x 400 mm
Wall mountable
USB cable length	3 m

Power

Power consumption (max)	320 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

System requirements

Mac compatibility
Windows operating systems supported	Windows 10, Windows 8
Mac operating systems supported	Y
Linux operating systems supported	Y

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Width	2018 mm (78.7 ")
Depth	112 mm (4.37 ")
Height	1211 mm (47.23 ")
Weight	61500 g (135.58 lbs)

Packaging data

Package width	2170 mm
Package depth	270 mm
Package height	1380 mm
Package weight	78000 g
Quantity per pack	1 pc(s)
Stylus included

Packaging content

Pen tray included
Cables included	HDMI, Power, USB Type-A to USB Type-B, USB Type-C
Batteries included
Quick start guide
Stylus pen type	Passive
Number of stylus pens	2
Stylus tip diameter	3 mm
