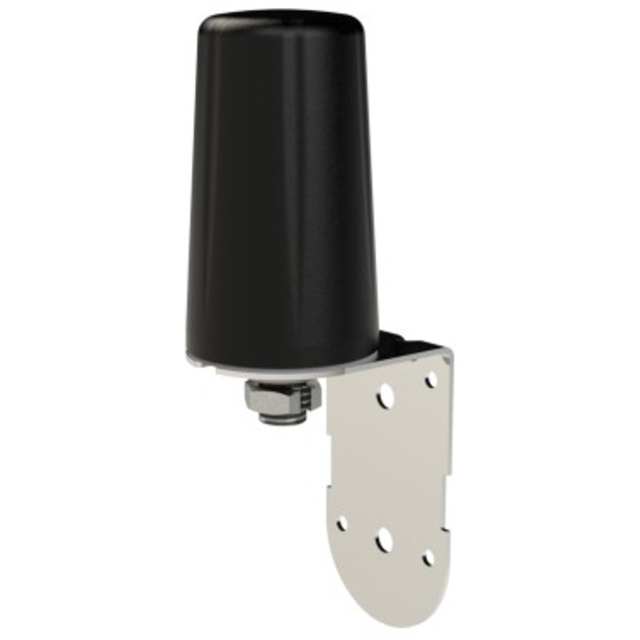

Panorama Antennas LPW-BC3G-26-2SP network antenna Omni-directional antenna SMA 2 dBi
MPN
LPW-BC3G-26-2SP
About this item
2dBi, Omni-directional, 698-960/1710-2700MHz, 50Ω, SMA Plug, Grey
The Panorama LPW range of antennas are designed to decrease the lifetime cost of M2M and smart metering installations by offering a robust, effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance.
The antenna offers ground-plane independent omni-directional performance across global cellular and LTE bands making it a versatile solution for any number of applications. The efficient element design ensures a high first time connection rate and an ongoing, robust communications link even in problematic coverage areas.
The antenna can be installed using the supplied automotive grade adhesive pad or via the integrated screw mounting bosses. If the antenna is panel mounted the cable can be routed through a hole in the adhesive pad to run invisibly into the panel behind.
Specifications
Performance
| Frequency band | 0.698 - 0.96 / 1.71 - 2.7 GHz |
| Impedance | 50 Ω |
| Antenna gain level (max) | 2 dBi |
Features
| Antenna type | Omni-directional antenna |
| Antenna connector type | SMA |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Cable length | 2 m |
| Product colour | Grey |
Operational conditions
| Operating temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Width | 32 mm (1.25 ") |
| Height | 19.6 mm (0.76 ") |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
LPW-BC3G-26-2SP by Panorama Antennas
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
