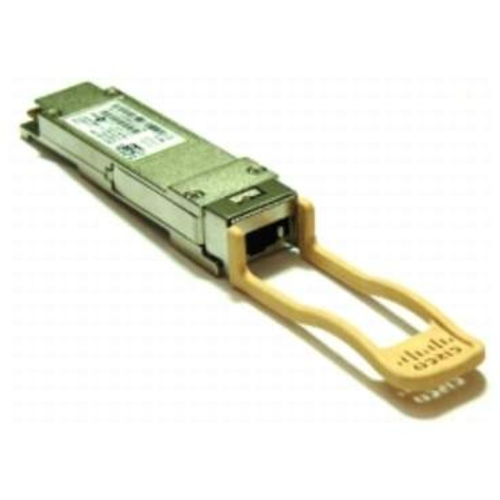

Tripp Lite N286-40G-PLR4 Cisco-Compatible QSFP+ Transceiver - 40GBase-PLR4, Singlemode MPO/MTP, 1310 nm, 10 km (6.2 mi.)

Out of stock
SKU
6_N286-40G-PLR4_1
$1,169.00
MPN
N286-40G-PLR4

About this item
Cisco-Compatible QSFP+ Transceiver - 40GBase-PLR4, Singlemode MPO/MTP, 1310 nm, 10 km (6.2 mi.)

QSFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server

This QSFP+ transceiver allows you to connect a singlemode fiber optic cable to a 40 Gbps network router, server or switch. It transmits data up to 10 kilometers (6.2 miles) using a 1260 to 1360 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.


Functionally Equivalent to Cisco QSFP-4X10G-LR-S Transceiver Module

The MSA-compliant N286-40G-PLR4 functions just like the equivalent Cisco QSFP-4X10G-LR-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the QSFP-4X10G-LR-S.


Hot-Swappable for Installation Without Network Interruption

This input/output device is fully hot-swappable, so you can install it without a potentially costly network shutdown or device reboot. Just plug the QSFP+ end of the transceiver into your Cisco network device. The other end has an MPO/MTP connector to link with singlemode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
Specifications
Networking
Data transfer rate (max) 40000 Mbit/s
Interface type QSFP+
Fiber optic connector MTP/MPO
Performance
SFP transceiver standard PLR4
Single-mode fiber (SMF) supported
Wavelength 1310 nm
Fiber ethernet cabling technology 40GBASE
Product colour Silver
Housing material Zinc steel
Maximum transfer distance 10000 m
Brand compatibility Cisco
Country of origin China
Harmonized System (HS) code 8517.62.0090
Power
Power consumption (typical) 2 W
Operational conditions
Maximum operating temperature 70 °C
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 85 %
Weight & dimensions
Width 13.5 mm (0.53 ")
Depth 68.1 mm (2.66 ")
Height 8.4 mm (0.33 ")
Weight 20 g (0.04 lbs)
Package width 78.7 mm
Package depth 144.8 mm
Package height 17.8 mm
Package weight 50 g
Packaging content
Package type Box
Logistics data
Quantity per pack 1 pc(s)
Master carton width 149.9 mm
Master carton length 185.4 mm
Master carton height 101.6 mm
Master carton weight 580 g
Quantity per master carton 10 pc(s)
Other features
Sustainability compliance
Master carton GTIN (EAN/UPC) 10037332279351
Fiber optic
CE, REACH, RoHS, UKCA
Note: Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for N286-40G-PLR4 by Tripp Lite you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
