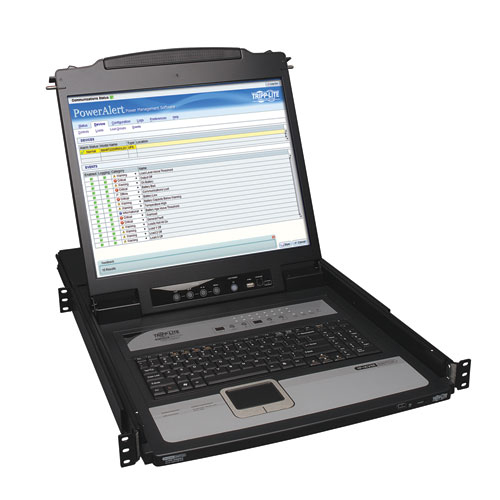

Tripp Lite NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch, 2+1 Users, 19 in. LCD, IP Remote Access
MPN
B070-016-19-IP2
UPC
037332177315
About this item
NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch, 2+1 Users, 48.26 cm (19") . LCD, IP Remote Access
Tripp Lite’s B070-016-19-IP2 NetCommander® 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser.
Connect computers/servers up to 30 m away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.
The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use.
Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column.
Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad
● Mounts in 1U of space in EIA-standard 19 in. rack
● Connects up to 16 computers/servers up to 30 m away via Cat5e/6 cabling and Tripp Lite B078 Series SIUs
● Computers with DisplayPort or HDMI connectors require Tripp Lite VGA adapters, such as P134-06N-VGA-V2 or P131-06N
● Fast Virtual Media KVM system: U.S. Patent #9,417,720
● BIOS-level control of any server brand and model
IP Remote Access for Fewer Trips to the Server Room
● Java-based application allows 24/7 remote access from anywhere via web browser over secure IP connection
● Non-browser client that can bypass browser-related Java security prompts is available
● Up to 3 users (1 local, 2 remote) can sign in simultaneously
● Up to 5 users can share a single session
● Supports both IPv4 and IPv6
● Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail
Simplifies IT Tasks
● Users can switch between ports via on-screen display, hotkeys or remote toolbar
● Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers
● Assign individual ports to an IP PDU port to power on/off the server connected to that port
● Virtual Media allows .iso file to be mounted to target server and accessed directly
● Supports RADIUS and LDAP/S authentication
● Log tracks events on your installation
Large 19 in. LCD Screen
● Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
● DDC emulation allows for optimal output to LCD
Advanced Security Features
● Multi-level password protection—create administrator accounts with full access and user accounts with limited access
● 128-bit AES and HTTPS encryption for highest security standards
Free NetCommander-AXS Management Software
● Access and manage all of your NetCommander IP KVM switches from one interface
● Access server ports on any KVM, power cycle or power on/off outlets of IP PDUs, and manage KVM settings
● Free download available at Technical Support link in right-hand column
● 19 in. LCD supports video resolutions up to 1366 x 768
● Cat5e/6 cabling connects computers/servers up to 30 m away
● Simultaneous support for 3 users—1 local, 2 remote
● Supports IPv4 and IPv6
● Mounts in 1U of space in EIA-standard 19 in. rack
System Requirements
● Computer/server with HD15 or USB port and PS/2 keyboard/mouse ports
● B078-Series SIU and Cat5e/6 cabling required for each connected computer/server
● Windows or Linux operating system (Windows required for remote access)
● Remote console computers require minimum Pentium 4 with 2 GB memory
● For international use P054-006 SCHUKO and P056-006-10A BS-1363 power cords available for purchase
Package Includes
● B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch
● C13 to NEMA 5-15P power cord, 1.83 m
● Rack-mounting hardware
● Quick Start Guide
Batteries not Required to Operate
Connect computers/servers up to 30 m away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.
The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use.
Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column.
Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad
● Mounts in 1U of space in EIA-standard 19 in. rack
● Connects up to 16 computers/servers up to 30 m away via Cat5e/6 cabling and Tripp Lite B078 Series SIUs
● Computers with DisplayPort or HDMI connectors require Tripp Lite VGA adapters, such as P134-06N-VGA-V2 or P131-06N
● Fast Virtual Media KVM system: U.S. Patent #9,417,720
● BIOS-level control of any server brand and model
IP Remote Access for Fewer Trips to the Server Room
● Java-based application allows 24/7 remote access from anywhere via web browser over secure IP connection
● Non-browser client that can bypass browser-related Java security prompts is available
● Up to 3 users (1 local, 2 remote) can sign in simultaneously
● Up to 5 users can share a single session
● Supports both IPv4 and IPv6
● Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail
Simplifies IT Tasks
● Users can switch between ports via on-screen display, hotkeys or remote toolbar
● Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers
● Assign individual ports to an IP PDU port to power on/off the server connected to that port
● Virtual Media allows .iso file to be mounted to target server and accessed directly
● Supports RADIUS and LDAP/S authentication
● Log tracks events on your installation
Large 19 in. LCD Screen
● Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely
● DDC emulation allows for optimal output to LCD
Advanced Security Features
● Multi-level password protection—create administrator accounts with full access and user accounts with limited access
● 128-bit AES and HTTPS encryption for highest security standards
Free NetCommander-AXS Management Software
● Access and manage all of your NetCommander IP KVM switches from one interface
● Access server ports on any KVM, power cycle or power on/off outlets of IP PDUs, and manage KVM settings
● Free download available at Technical Support link in right-hand column
● 19 in. LCD supports video resolutions up to 1366 x 768
● Cat5e/6 cabling connects computers/servers up to 30 m away
● Simultaneous support for 3 users—1 local, 2 remote
● Supports IPv4 and IPv6
● Mounts in 1U of space in EIA-standard 19 in. rack
System Requirements
● Computer/server with HD15 or USB port and PS/2 keyboard/mouse ports
● B078-Series SIU and Cat5e/6 cabling required for each connected computer/server
● Windows or Linux operating system (Windows required for remote access)
● Remote console computers require minimum Pentium 4 with 2 GB memory
● For international use P054-006 SCHUKO and P056-006-10A BS-1363 power cords available for purchase
Package Includes
● B070-016-19-IP2 NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch
● C13 to NEMA 5-15P power cord, 1.83 m
● Rack-mounting hardware
● Quick Start Guide
Batteries not Required to Operate
Specifications
Display
| Display diagonal | 19 " |
| Display resolution | 1280 x 1024 pixels |
| Display | LCD |
| On Screen Display (OSD) |
Technical details
| Relative humidity | 0 - 80 % |
| Product colour | Black |
| Security algorithms | 128-bit AES,802.1x RADIUS, HTTPS |
| Built-in KVM switch | |
| KVM switch ports quantity | 16 |
| Height (in Rack Units) | 1 |
| Operating temperature (T-T) | -4 - 140 °F |
Ports & interfaces
| Interface | PS/2; USB; VGA |
Keyboard
| Hot keys |
Power
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1.2/0.7 A |
Certificates
| Certification | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
| RoHS compliance |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Width | 477.3 mm (18.61 ") |
| Height | 43.4 mm (1.69 ") |
| Depth | 692.4 mm (27 ") |
| Weight | 12910 g (28.46 lbs) |
Packaging content
| Quick installation guide | |
| Rack mount kit |
