Altronix eBridge100RMT Network transmitter & receiver 100Mbit/s

SKU

15_EBRIDGE100RMT_1

Be the first to review this product

$318.00

Visit our Altronix Store

MPN

EBRIDGE100RMT

UPC

782239952809

Recommended Product

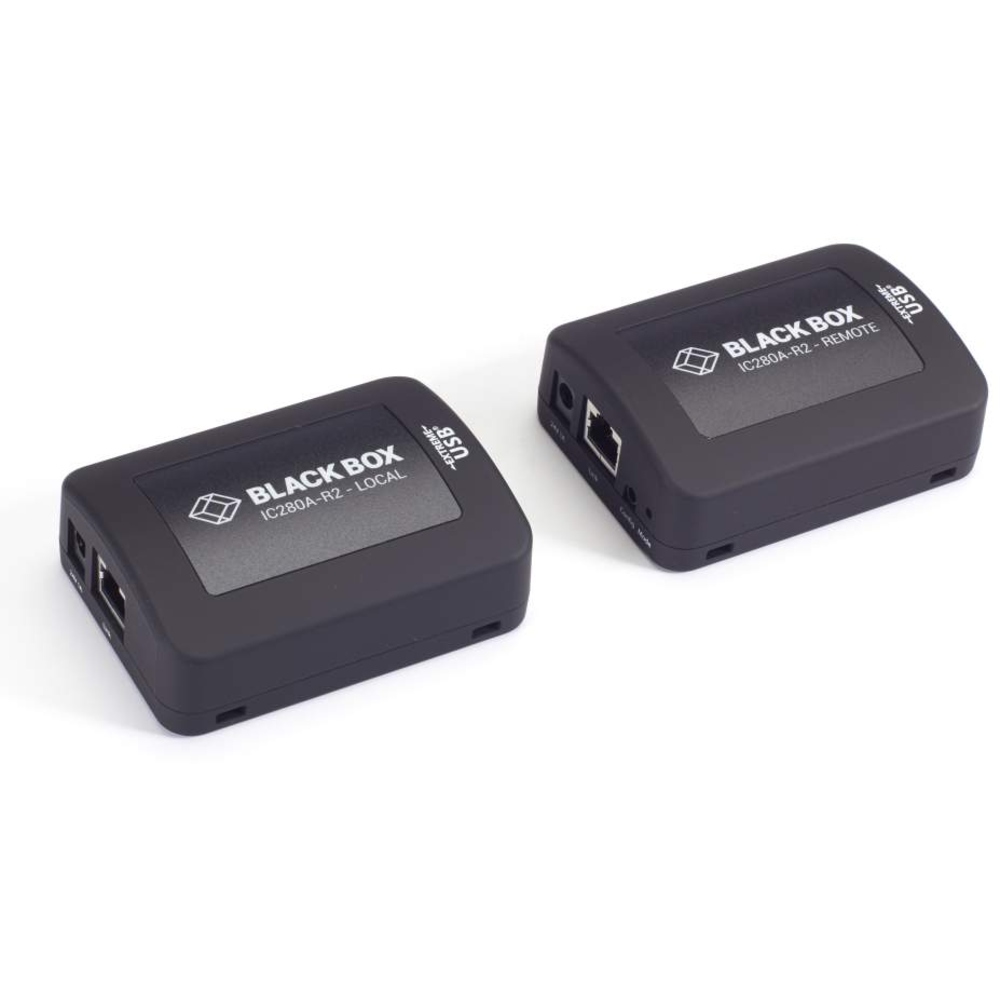

Black Box USB 2.0 EXTENDER 1PORT CAT5 Network transmitter

$451.00

About this item

EoC Single Port Adapter Kit, 100Mbps, Passes PoE/PoE+, Includes Receiver & Transceiver

Description
Specifications

eBridge100RMT Ethernet over Coax/CAT5e Adapter Kits transmit full duplex data at 100mbps and pass PoE compliant power over coax 304m, or CAT5e cable up to 500m without repeaters. The adapter kit consists of an eBridge100RM receiver and an eBridge100TM transceiver. These adapters, along with the connected IP camera or edge device, is powered by virtually any midspan or endspan. Remote management functions such as edge device reset, monitoring real-time current draw and port status are possible when coupled with an Altronix NetWay8M/16M Midspan. eBridge100RMT is compatible with Megapixel, HD720, HD1080 and VGA cameras.

Specifications

Performance

Type	Network transmitter & receiver
Maximum transfer distance	500 m
Power over Ethernet (PoE)
Cable types supported	Cat5e
Ethernet LAN data rates	100 Mbit/s

Networking

Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af, IEEE 802.3at

Ports & interfaces

Ethernet LAN (RJ-45) ports	4
RJ-45 ports quantity (transmitter)	2
RJ-45 ports quantity (receiver)	2

Design

Product colour	Black
LED indicators	Link, PoE, Status

Operational conditions

Operating temperature (transmitter)	-20 - 49 °C
Storage temperature (transmitter)	-20 - 70 °C
Operating temperature (receiver)	-20 - 49 °C
Storage temperature (receiver)	-20 - 70 °C

Weight & dimensions

Transmitter width	88.89 mm
Transmitter depth	88.89 mm
Transmitter height	25.4 mm
Receiver width	88.89 mm
Receiver depth	88.89 mm
Receiver height	25.4 mm

Note: Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for EBRIDGE100RMT by Altronix you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
