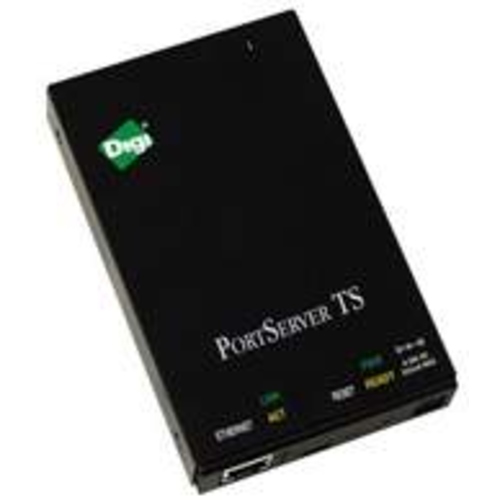

Digi PortServer TS 2 RS-232 serial server
MPN
70002043
Condition
Open Box
About this item
2 x RS-232 RJ-45, 1 x RJ-45 Ethernet, 10/100Base-T
Features:
- 1, 2 or 4 RS-232 RJ-45 serial ports
- 9-30VDC power supply
PortServer TS serial servers offer a simple, reliable and cost-effective solution for connecting multiple serial devices over industry standard Ethernet. They are available with one, two or four RS-232 serial ports. Target applications for PortServer TS include retail/point-of-sale, building control and medical point-of-care.
PortServer TS is ideal for applications requiring COM ports or where TCP/UDP Sockets, or UDP multicast functionality is required. It includes Digi’s patented RealPort COM port redirector technology, which makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer, allowing existing software applications to work without modification.
Specifications
Technical details
| Serial interface type | RS-232 |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Serial ports quantity | 2 |
| Isolation | 1.5 kV |
| Surge protection voltage | 4 kV |
| Throughput data rate | 230 Kbit/s |
| Data transfer rate | 100 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.3 |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Input voltage | 9 - 30 V |
Operational conditions
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
Protocols
| Supported network protocols | UDP/TCP, DHCP/RARP/ARP-Ping, PPP, Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP, SNMP |
Indication
| Link/Act LED |
Security
| Security algorithms | HTTPS, SSH, SSL/TLS |
Weight & dimensions
| Dimensions (WxDxH) | 84.6 x 133.4 x 24.2 mm |
| Weight | 64 g (0.14 lbs) |
Management features
| Management protocols | SNMP, HTTP/HTTPS, DHCP |
Other features
| Compatible operating systems | AIX, HP-UX, Linux, SCO OpenServer 5, SCO OpenServer 6, Solaris Intel, Solaris SPARC, Windows XP, Windows Server 2003, Windows Server 2008, Windows Vista |
Design
| Certification | CE, FCC Part 15 (Class A), EN55034, EN55022 Class A |
| Safety | UL 1950 |
