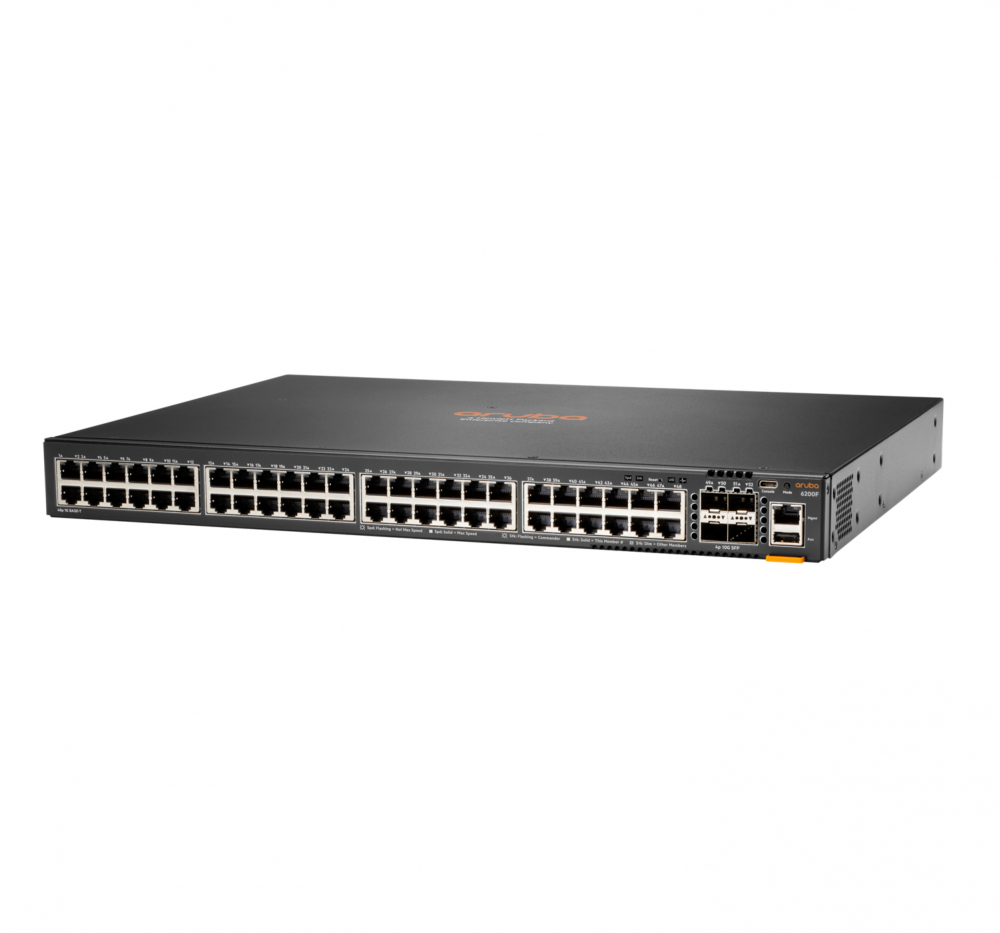

Aruba, a Hewlett Packard Enterprise company 2930F Managed Gigabit Ethernet (10/100/1000) 1U Power over Ethernet (PoE)

In stock
Only 2 left
SKU
2573914
$7,860.00
Eligible for Free 2-Day Shipping & Free Returns
This item cannot be combined with products that are not eligible for Free Two-Day Shipping.
MPN
JL558A#ABA
UPC
190017219660
About this item
Aruba 2930F, 48G, PoE+, 4SFP+, 740W
The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and power so are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. A powerful Aruba ProVision ASIC delivers performance, robust feature support and value with programmability
for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access
OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required. The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set includes a limited lifetime warranty.
- Aruba Layer 3 switch series with VSF stacking, static, RIP and Access OSPF Routing, Dynamic Segmentation, ACLs, and robust QoS
- Supports advanced security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central
- Convenient built-in 1GbE or 10GbE uplinks and up to 740 W PoE+
- Software defined ready with REST APIs and OpenFlow support
- Simple deployment with Zero Touch Provisioning
Specifications
Management features
Switch type Managed
System event log
Quality of Service (QoS) support
Web-based management
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity 4
Networking
Networking standards IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G support
Data transmission
Switching capacity 176 Gbit/s
Throughput 112 Mpps
MAC address table 32786 entries
Latency (1 Gbps) 3.8 µs
Latency (10 Gbps) 1.6 µs
Design
Rack mounting
Form factor 1U
Product colour Black
Performance
Processor frequency 1016 MHz
Processor model ARM Cortex-A9
Noise level 55.1 dB
Flash memory 4000 MB
Memory type DDR3-SDRAM
Power
Power consumption (typical) 49.9 W
Power consumption (max) 980 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 9.2/ 4.9 A
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 740 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 15 - 95 %
Storage relative humidity (H-H) 15 - 95 %
Heat dissipation 420.9 BTU/h
Weight & dimensions
Width 442.5 mm (17.26 ")
Depth 32 mm (1.25 ")
Height 43.9 mm (1.71 ")
Weight 4790 g (10.56 lbs)
Other features
Y
Note: Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for JL558A#ABA by Aruba, a Hewlett Packard Enterprise company you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
