Hanwha XRN-1620SB1 Black

SKU

15_XRN-1620SB1-2TB_1

Be the first to review this product

$1,597.00

Visit our Hanwha Store

MPN

XRN-1620SB1-2TB

Recommended Product

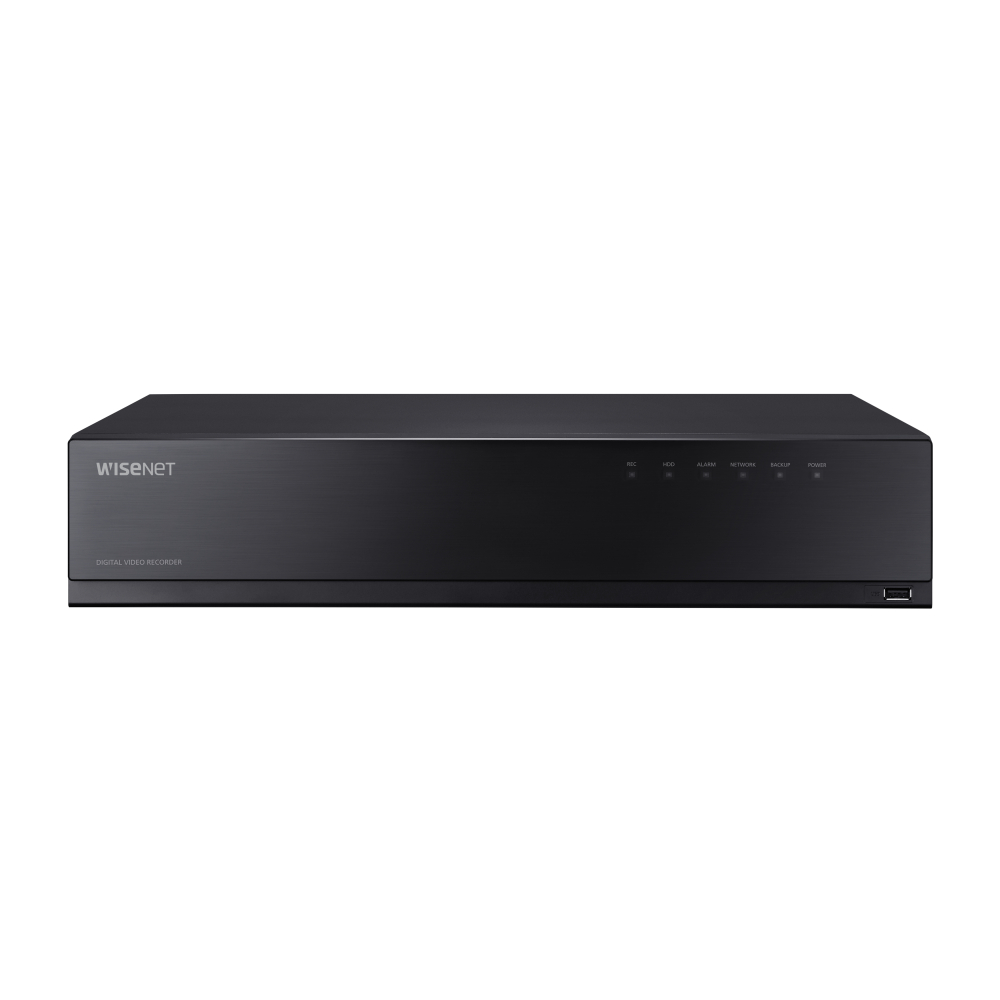

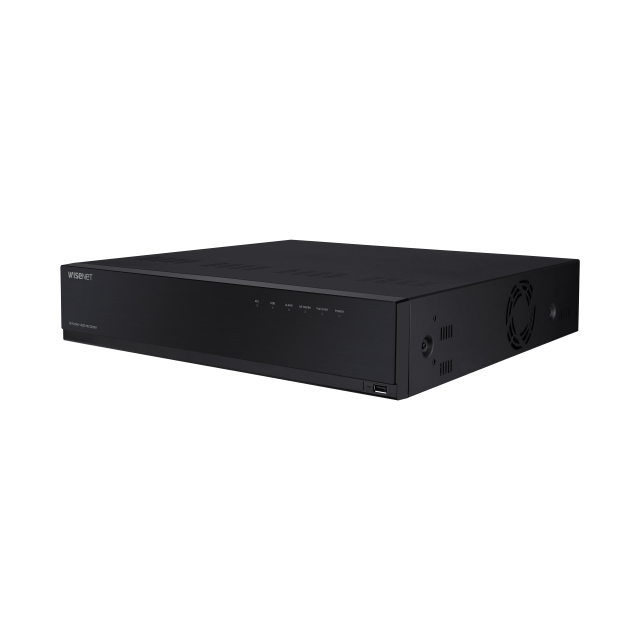

Hanwha WRN-810S 1U

$1,297.00

About this item

32MP, 16 Ch, 140Mbps max, 440 x 89.8 x 428.4 mm, 5.76Kg

Description
Specifications

Up to 16 Channels, up to 32MP camera resolution supported
Maximum 140Mbps network camera recording
HDM HDMI / VGA monitor output
User friendly UI / UX
AI search support when working with Wisenet AI camera
Dynamic Event support
New event function of cameras is available without software update
H.265, H.264, MJPEG codec supported
Plug & play by 16 PoE ports
Bookmark management (Up to 100 set)
SATA 4ea (Up to 24TB)

Specifications

Performance

Video input channels	16 channels
Alarm input channels	4
Alarm output channels	2
Supported resolutions	3840x2160, 1920x1080
PTZ modes	Preset point
Input bandwidth	140 Mbit/s
Output bandwidth	32 Mbit/s
PTZ control (Pan/Tilt/Zoom)

Storage

Number of hard drives supported	4
Total installed storage capacity	2000 GB
Hard drive interface	SATA III

Ports & interfaces

Ethernet LAN (RJ-45) ports	2
Ethernet LAN data rates	10,1000,100 Mbit/s
Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity	1
HDMI ports quantity	1
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
USB 3.0 (3.1 Gen 1) Type-A ports quantity	1
Supported network protocols	IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)

Features

LED indicators	Y
On/off switch
Product colour	Black

Power

Power consumption (max)	310 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 85 %

Weight & dimensions

Width	440 mm (17.16 ")
Depth	428.4 mm (16.71 ")
Height	89.8 mm (3.5 ")
Weight	5760 g (12.7 lbs)

Note: Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for XRN-1620SB1-2TB by Hanwha you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
