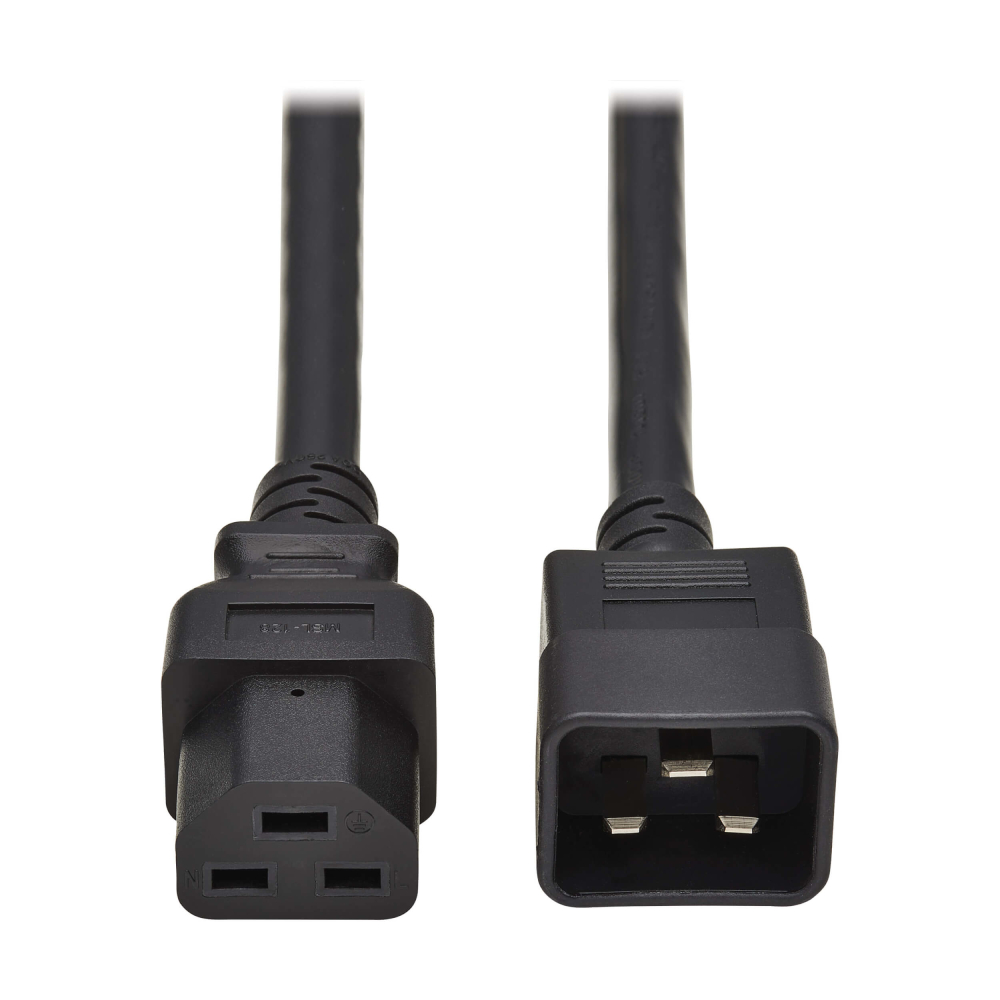

Tripp Lite P035-010 power cable 3.05 m C20 coupler C21 coupler
MPN
P035-010
UPC
037332275011
About this item
Power Cord, C20 to C21 - Heavy-Duty, 20A, 250V, 12 AWG, 10 ft. (3.05 m), Black
20A C20-to-C21 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This heavy-duty cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. This cord can be used to connect a blade server, large router or network switch with a C22 inlet, usually found on high-powered, high-temperature (maximum pin 155°C/311°F) equipment, to a PDU or UPS system. It’s an ideal choice for upgrading or replacing the standard power cord provided by the device’s manufacturer. The 10-foot (3-meter) length allows you great flexibility in placing equipment with respect to the power outlet. Specifications
Features
| Cable length | 3.05 m |
| Connector 1 | C20 coupler |
| Connector 2 | C21 coupler |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 12 |
| Cable type | SJT |
| Number of conductors | 3 |
| Jacket material | Polyvinyl chloride (PVC) |
Power
| Input voltage | 250 V |
| Maximum current | 20 A |
Operational conditions
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 65 % |
| Storage relative humidity (H-H) | 10 - 65 % |
Packaging data
| Quantity per pack | 1 pc(s) |
| Package width | 228.6 mm |
| Package depth | 323.8 mm |
| Package height | 25.4 mm |
| Package weight | 720 g |
Technical details
| Conductor cross section | 3.31 mm² |
Weight & dimensions
| Diameter | 11 mm |
| Weight | 730 g (1.61 lbs) |
Logistics data
| Master carton width | 400 mm |
| Master carton length | 584.2 mm |
| Master carton height | 127 mm |
| Master carton weight | 7210 g |
| Quantity per master carton | 10 pc(s) |
Other features
| Country of origin | Vietnam |
| Female connector | |
| Black | |
| 10037332275018 | |
| Y | |
| 8544.42.9090 | |
| REACH, RoHS | |
| Male connector |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
P035-010 by Tripp Lite
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
