Cisco Aironet 1542I Outdoor Wireless AP 802.11ac Access Point
About this item
Dual-band 802.11a/g/n/ac, Wave 2, internal omni antennas, B regulatory domain
The Aironet 1540 Series outdoor access points provide the most current 802.11ac Wave 2 functions in a rugged, ultra-low-profile, easy-to-deploy housing.
The Cisco Aironet 1540 Series is perfect for applications that need rugged outdoor Wi-Fi coverage and supports the latest 802.11ac Wave 2 radio standard.
In a compact, aesthetically pleasing, easy-to-deploy package, the 1540 Series offers flexible deployment options for service providers and enterprise networks that need the fastest links possible for mobile outdoor clients (smartphones, tablets, and laptops) and wireless backhaul.
With Aironet 1542i Series access points, network operators can choose how much wireless coverage they want and how easy it should be to set up.
The air-ap1542i-b-k9 Series can be set up as either a traditional access point or a wireless mesh access point.
Either way, it has the throughput that today's bandwidth-hungry devices need.
Specifications
Performance
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate (max) | 1000 Mbit/s |
| 2.4 GHz | |
| 5 GHz | |
| Frequency band | 2.412 - 2.462, 5.18 - 5.24, 5.26 - 5.32, 5.5 - 5.72, 5.745 - 5.825 GHz |
| Number of users | 400 user(s) |
| MIMO | |
| MIMO type | Multi User MIMO |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Transmitting power | 27 dBmW |
| Channels quantity | 12 channels |
| Reset button | |
| Certification | UL60950 CAN/CSA-C22.2 No. 60950 IEC 60950 EN 60950 EN61000-4-5 EN61000-4-4 EN61000-4-3 EN61000-4-2 FCC RSS-210 RSS-102 AS/NZS 4268.2003 ARIB-STD 66 (Japan) ARIB-STD T71 (Japan) EN 300 328 EN 301 893 ICES-003 EN 301 489-1, -17 |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
Security
| Security algorithms | 802.1x RADIUS, AES, EAP-PEAP, EAP-TLS, EAP-TTLS, WPA, WPA2 |
| MAC address filtering |
Antenna
| Antennas quantity | 2 |
Power
| Power consumption (typical) | 13 W |
| Power over Ethernet (PoE) |
Design
| Internal | |
| Placement | Pole, Wall |
| Product colour | Grey |
| International Protection (IP) code | IP67 |
| LED indicators | Y |
Software
| Maximal-Ratio Combining (MRC) | |
| Cyclic Shift Diversity (CSD) | |
| Dynamic Frequency Selection (DFS) |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
Weight & dimensions
| Width | 200 mm (7.8 ") |
| Depth | 150 mm (5.85 ") |
| Height | 61 mm (2.38 ") |
| Weight | 1250 g (2.76 lbs) |
Packaging content
| Number of products included | 1 pc(s) |
Other features
| 867 | |
| Integrated antenna |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
AIR-AP1542I-B-K9 by Cisco
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
Similar Products
View More-

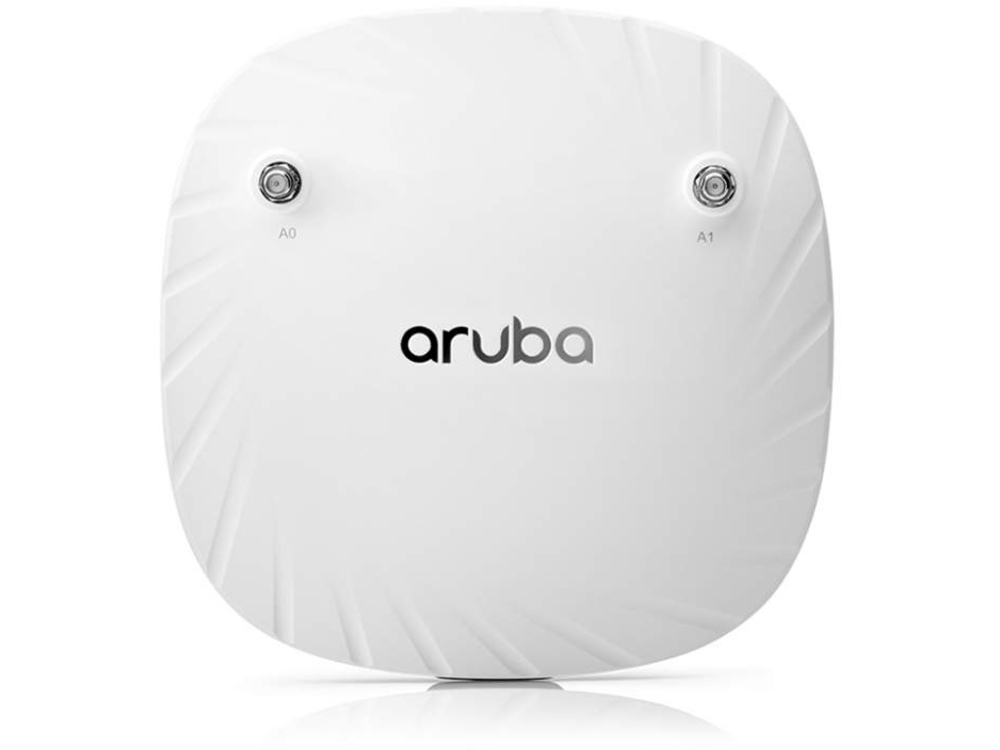

Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba AP-505 (US) WLAN access point 1774 Mbit/s Power over Ethernet (PoE) White (R2H29A)
$744.00 -
Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba AP-514 (US) WLAN access point 5375 Mbit/s Power over Ethernet (PoE) White (Q9H58A)
$1,165.00 -

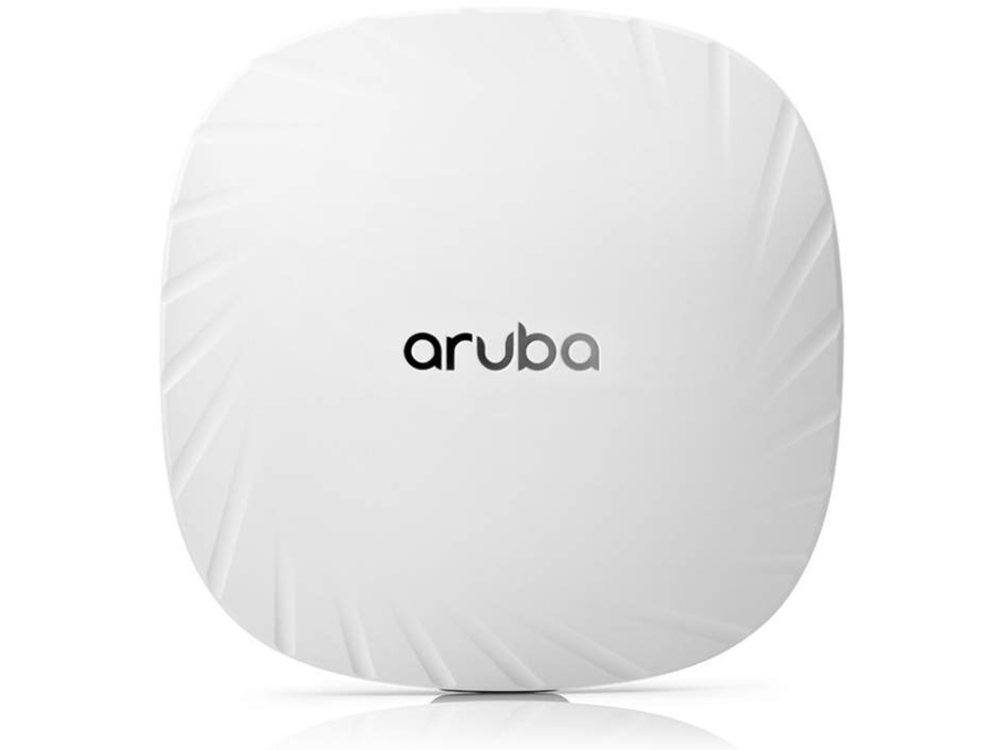

Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba AP-515 (US) WLAN access point 5375 Mbit/s Power over Ethernet (PoE) White (Q9H63A)
$977.50 -
Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba AP-515 (US) TAA 5375 Mbit/s Power over Ethernet (PoE) White (Q9H73A)
$1,374.00 -
Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba AP-565 (US) 1774 Mbit/s Power over Ethernet (PoE) White (R4W44A)
$1,367.00 -
Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba AP-567 (US) 1774 Mbit/s White Power over Ethernet (PoE) (R4W49A)
$1,348.00 -

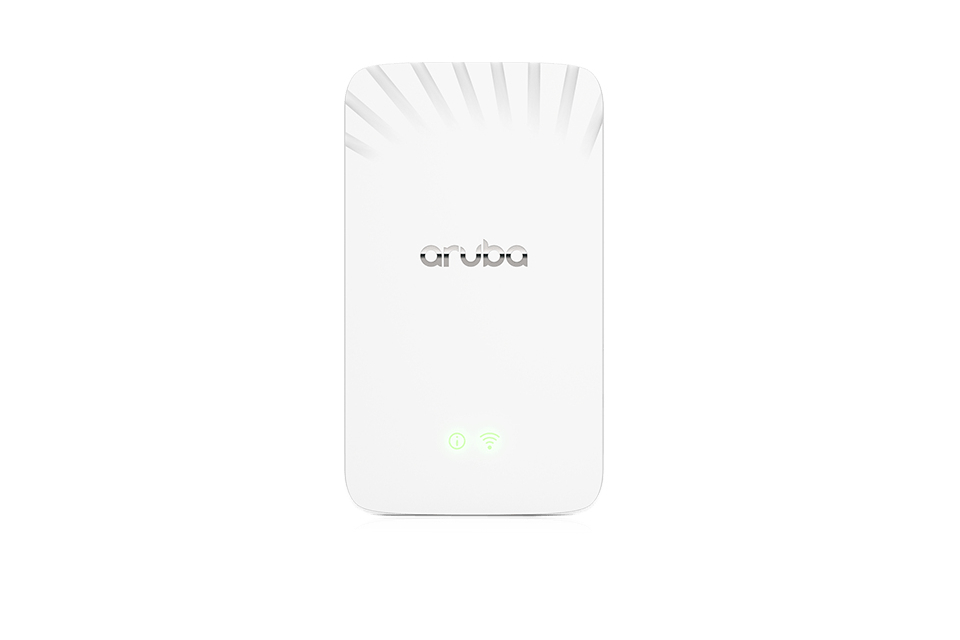

Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba AP-503H (US) 1487 Mbit/s White Power over Ethernet (PoE) (R3V38A)
