TP-Link TL-FC111B-20 10/100 Mbps WDM Media Converter
MPN
TL-FC311B-20
UPC
845973030940
About this item
10/100/1000 Mbps, 9/125 μm single-mode, UTP category 5, 5e 100 m max
What Does This Product Do?
The TL-FC111B-20 is a 100-Mbps media converter with a 100-Mbps RJ-45 port and a 100-Mbps SC fiber port for changing electrical and optical signals
Optical fiber can also be used to send data over long distances for business purposes, like keeping an eye on security in a park or setting up a wireless network.
How Does This Product Work?
The TL-FC111B-20 uses WDM (wavelength division multiplexing) technology to send and receive data over a distance of up to 20 km (12.4 miles) using only one fiber, saving customers half the cost of cable deployment.
The TL-FC111B-20 sends data at 1310 nm and gets data at 1550 nm over an optical fiber.
At the other end, the TL-FC111A-20 works as a pair to receive data at 1310 nm and send data at 1550 nm.
Other characteristics
Also, this media converter can be used on its own (without a rack) or with the TP-Link TL-FC1420 rack for auto MDI/MDI-X in the TX port, where the duplex mode is automatically set.
Specifications
Networking
| Data transfer rate (max) | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate | 1000 Mbit/s |
Ports & interfaces
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack |
Performance
| Maximum transfer distance | 100 m |
| Wavelength | 1550 nm |
| Wavelength-division multiplexing (WDM) | |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported | 9/125 µm |
Design
| Internal | |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
Power
| Output voltage | 5 V |
| Output current | 0.6 A |
Weight & dimensions
| Width | 94.5 mm (3.69 ") |
| Depth | 73 mm (2.85 ") |
| Height | 27 mm (1.05 ") |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 90 % |
Packaging content
| AC adapter included | |
| Manual |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
TL-FC311B-20 by TP-LINK
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
Similar Products
View More-

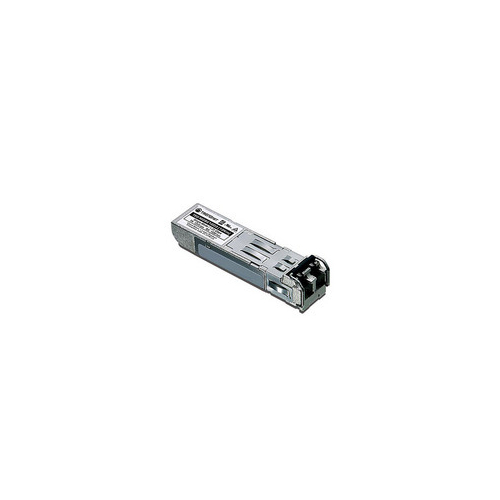

Transition NetworksTransition Networks Small Tranceiver Module 1000BASE-SX network media converter (TN-GLC-SX-MM)
$34.00 -

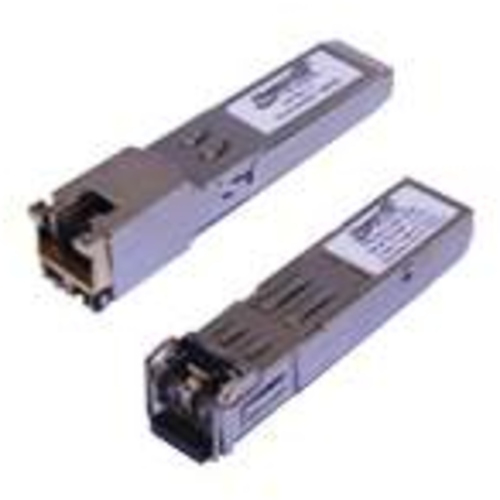

Transition NetworksTransition Networks Small Tranceiver Module 1000BASE-LX network media converter (TN-GLC-LH-SM)
$35.00 -

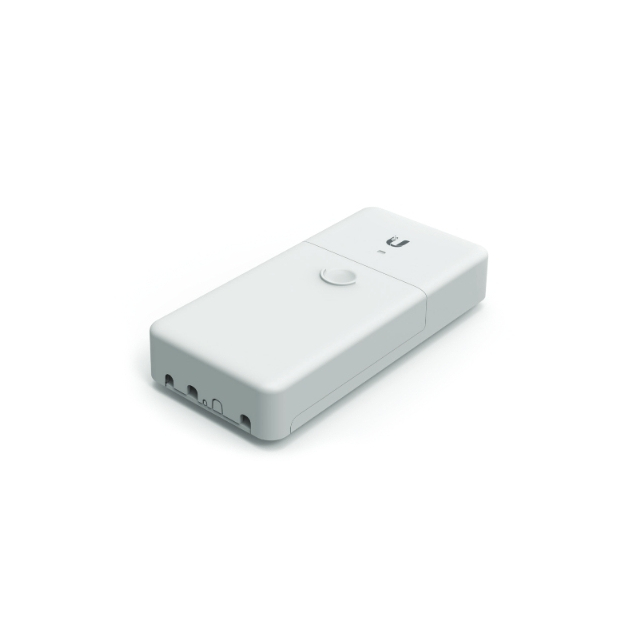

Ubiquiti NetworksUbiquiti Networks F-POE-G2 network media converter 1000 Mbit/s Internal White (F-POE-G2)
