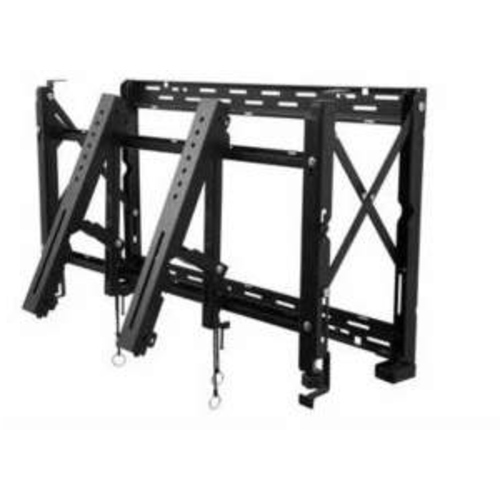

Premier Mounts LMV flat panel wall mount
About this item
Video Wall Framing System for Flat-Panels up to 160 lb./72 kg
The LMV is a customizable video wall framing system for flat-panels weighing up to 160 lb./72 kg with a mounting pattern of 200 x 200 to 600 x 400mm. It features multi-monitor stacking, spring-loaded release, open design, custom spacers, top adjustable mounting brackets and straight scissor-style extension.
- Updated latch design and smaller base frame size provide quick and easy installation
- Laser cut, precision design spacers ensure seamless alignment without need for time consuming adjustments
- Patent pending, top-adjustable mounting brackets ensure alignment and levelness of displays
- Scissor design and compact mounting arms allow for extension in one smooth motion
- Spring-loaded locking mechanism provides quick release from locked position
- “Click-It" locking feature confirms display is secure through an audible noise
Features
- Shared component parts across product line reduces cost and training time and optimizes labor efficiency- Updated latch design and smaller base frame size provide quick and easy installation
- Laser cut, precision design spacers ensure seamless alignment without need for time consuming adjustments
- Patent pending, top-adjustable mounting brackets ensure alignment and levelness of displays
- Scissor design and compact mounting arms allow for extension in one smooth motion
- Spring-loaded locking mechanism provides quick release from locked position
- “Click-It" locking feature confirms display is secure through an audible noise
Specifications
Mounting
| Minimum screen size compatibility | 37 " |
| Maximum weight capacity | 72.7 kg |
| Maximum screen size compatibility | 63 " |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
Design
| Product colour | Black |
Weight & dimensions
| Width | 724 mm (28.24 ") |
| Depth | 124 mm (4.84 ") |
| Height | 483 mm (18.84 ") |
| Weight | 20500 g (45.19 lbs) |
| Depth (max) | 306 mm |
Other features
| Mounting | 200 x 200 (Min) - 600 x 400 (Max) mm |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
LMV by Premier Mounts
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
