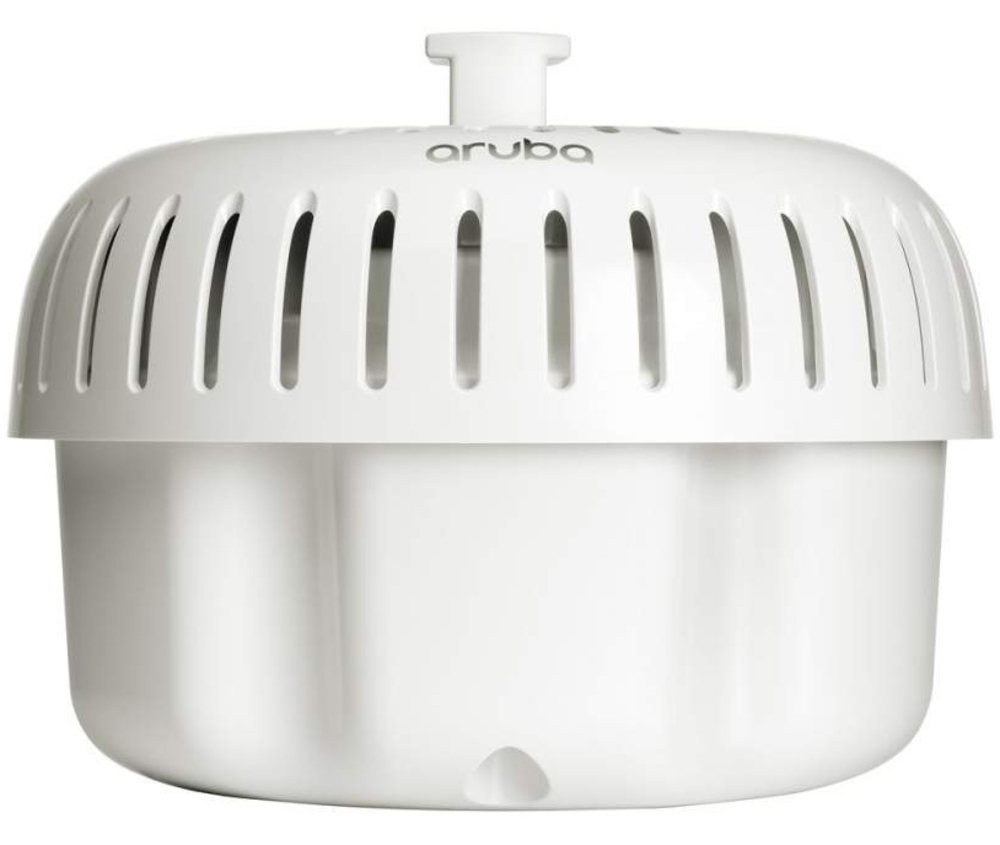

Hewlett Packard Enterprise Aruba AP-565 (US) TAA 1774 Mbit/s White Power over Ethernet (PoE)
MPN
R4W54A
UPC
190017447650
About this item
Aruba AP-565 (US) TAA 802.11ax Dual 2x2:2 Radio Integrated Omni Antenna Outdoor AP
Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to withstand extreme temperatures, persistent moisture and precipitation, electrical surges, and airborne contaminants.
Includes or interoperates with Aruba ESP capabilities such as AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open security, and Dynamic Segmentation.
Purpose-built to withstand extreme temperatures, persistent moisture and precipitation, electrical surges, and airborne contaminants.
Includes or interoperates with Aruba ESP capabilities such as AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open security, and Dynamic Segmentation.
Specifications
Performance
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate (max) | 1774 Mbit/s |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| 2.4 GHz | |
| 5 GHz | |
| MIMO | |
| MIMO type | Multi User MIMO |
| Modulation | 16-QAM,64-QAM,256-QAM,1024-QAM, BPSK, CCK, QPSK |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| USB connector type | USB Type-C |
Security
| Security algorithms | WPA2, WPA3 |
Antenna
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 5.4 dBi |
Power
| Power consumption (max) | 15.6 W |
| Power over Ethernet (PoE) |
Design
| Product colour | White |
| Placement | Pole, Wall |
Features
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Bluetooth | |
| Bluetooth version | 5.0 |
Software
| MDI / DMI-X automatic switchover |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Width | 165 mm (6.44 ") |
| Depth | 165 mm (6.44 ") |
| Height | 110 mm (4.29 ") |
| Weight | 1030 g (2.27 lbs) |
