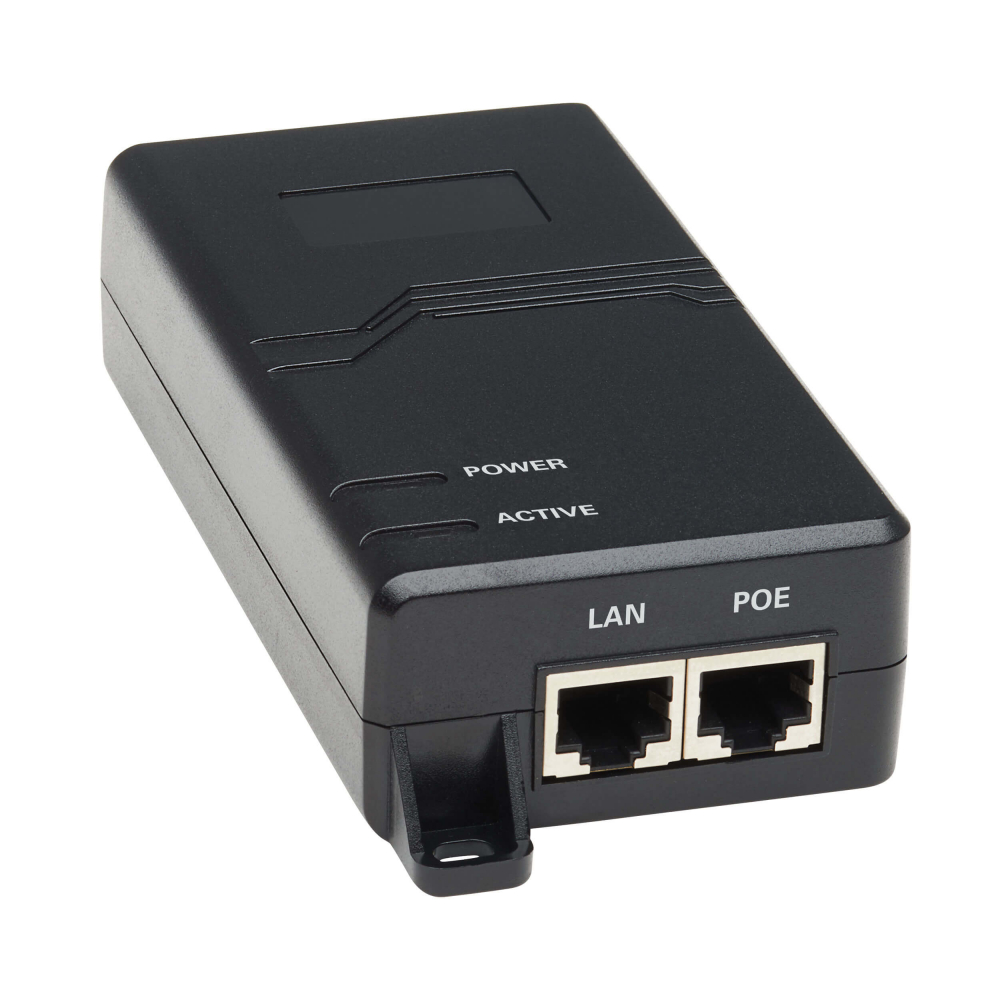

Intellinet 561235 Gigabit Ethernet 48V PoE adapter
About this item
PoE+, 10/100/1000 Mbps RJ-45, 100 – 240 V AC, 48 V DC, 123 x 61 x 40 mm
IEEE 802.3bt Compatible
The Intellinet Gigabit High-Power PoE+ Injector provides up to 60 W using all four pairs of twisted-pair Cat5 or Cat6 cabling to support IoT applications such as lighting, sensors and building automation. Nurse call systems require 30 to 50 watts of power. Point-of-sale card readers & printers need up to 60 watts. Lighting fixtures and controllers require 40 to 50 watts. Thin clients draw up to 50 watts. The IEEE 802.3bt Ultra PoE standard is an excellent solution for bringing power to these important, critical systems. With the finalization of the IEEE 802.3bt standard, which is expected to happen in 2017, many new IEEE 802.3bt powered devices will enter the market. You are ready for them with an Intellinet Gigabit High-Power PoE+ Injector.
Full Compatibility with Existing IEEE 802.3af/at PoE Powered Devices
The Intellinet Gigabit High-Power PoE+ Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch.
Reduced Wiring Costs
It's no longer necessary to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.
Protect Your Equipment.
Once DC power is connected to your networked equipment through the Cat5e/6 cabling, the Intellinet PoE Injector ensures that your products are protected from power problems like short circuits (short GRND), current overloads and high voltages.
The Intellinet Gigabit High-Power PoE+ Injector provides up to 60 W using all four pairs of twisted-pair Cat5 or Cat6 cabling to support IoT applications such as lighting, sensors and building automation. Nurse call systems require 30 to 50 watts of power. Point-of-sale card readers & printers need up to 60 watts. Lighting fixtures and controllers require 40 to 50 watts. Thin clients draw up to 50 watts. The IEEE 802.3bt Ultra PoE standard is an excellent solution for bringing power to these important, critical systems. With the finalization of the IEEE 802.3bt standard, which is expected to happen in 2017, many new IEEE 802.3bt powered devices will enter the market. You are ready for them with an Intellinet Gigabit High-Power PoE+ Injector.
Full Compatibility with Existing IEEE 802.3af/at PoE Powered Devices
The Intellinet Gigabit High-Power PoE+ Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch.
Reduced Wiring Costs
It's no longer necessary to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data.
Protect Your Equipment.
Once DC power is connected to your networked equipment through the Cat5e/6 cabling, the Intellinet PoE Injector ensures that your products are protected from power problems like short circuits (short GRND), current overloads and high voltages.
Specifications
Networking
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Duplex system | Full |
| Cable standard | Cat5e |
Features
| Product colour | Black |
| LED indicators | PoE |
| Certification | FCC , CE |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Power over Ethernet (PoE) voltage | 48 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Output current | 1.25 A |
| Power consumption (max) | 60 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage temperature (T-T) | -20 - 80 °C |
Weight & dimensions
| Dimensions (WxDxH) | 61 x 123 x 40 mm |
| Weight | 290 g (0.64 lbs) |
Packaging content
| Number of products included | 1 pc(s) |
| Power cord included | |
| Manual |
