Mellanox Spectrum Based SN2410 Ethernet Switch
MPN
MSN2410-BB2RC
About this item
Spectrum Based 10GbE/100GbE 1U Open Ethernet Switch with Cumulus Linux:
- Throughput: 4Tb/s - 2.97 billion packets per second Bpps;
- 8 x 40/56/100GbE ports in 1RU QSFP28;
- 48 x 10/25GbE ports SFP28;
- 16 x 50GbE ports;
- Lowest latency 300nsec port-to-port;
- Flat latency across L2 and L3 forwarding;
- Cut-through latency between ports in different speeds;
- Lowest power & RoHS-compliant;
Mellanox Spectrum-Based 25GBE/100GBE 1U Open Ethernet Switch MSN2410-CB2F provides today's data centers with the most reliable, highest performance 100GbE ToR switching platform.
A highly optimized port configuration allows for high-speed rack connectivity with 10GbE or 25GbE.
The new Mellanox Spectrum Based SN2410 Ethernet Switch provides dynamic shared buffers, predictable wire speed performance, and no packet loss for any packet size.
Mellanox's Spectrum SN2410 provides today's data centers with the most reliable, high performance 100GbE ToR switching platform.
It is an ONIE (Open Network Install Environment) platform that provides a wide range of operating systems for mounting and utilizing the strengths of Mellanox Spectrum ASIC and Open Networking.
A top-of-rack (ToR) switch such as the SN2410 will allow maximum flexibility and offer port speeds ranging from 10Gb/s to 100Gb/s per port.
Thanks to its optimized port configuration, this rack allows high-speed connectivity to any server at speeds of 10GbE or 25GbE.
100GbE ports provide multiple blocking ratios for different applications.
With 8 100GbE ports (can be split to 16 50GbE ports) and 48 25GbE ports, the SN2410 carries a massive throughput of 4Tb/s with impressive 5.95Bpps processing capability in its 1RU footprint.
Specifications
Management features
| Switch type | Managed |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | |
| Web-based management |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type | None |
| Switching optical modules type | 100 Gigabit Ethernet |
| Installed SFP+ modules quantity | 48 |
| QSFP+ module slots quantity | 8 |
Networking
| Broadcast storm control | |
| Link aggregation | |
| Port mirroring | |
| Spanning tree protocol |
Data transmission
| Switching capacity | 4000 Gbit/s |
| Throughput | 5950 Mpps |
| Store-and-forward |
Optical fiber
| Fiber optic connector | QSFP28, SFP28 |
Security
| BPDU filtering/protection | |
| Loop protection |
Design
| Rack mounting | |
| Stackable | |
| Form factor | 1U |
| Product colour | Black |
| DIN rail mounting |
Power
| Power connector | AC-in jack |
| Power consumption (typical) | 165 W |
| Power supply included | |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | |
| Input current | 4,5 A |
| Number of power supply units | 2 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Weight & dimensions
| Width | 438 mm (17.08 ") |
| Depth | 436 mm (17 ") |
| Height | 43.8 mm (1.71 ") |
| Weight | 8520 g (18.78 lbs) |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
MSN2410-BB2RC by Mellanox Technologies
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
Similar Products
View More-
Hewlett Packard EnterpriseHewlett Packard Enterprise R8S90A network switch Managed 5G Ethernet (100/1000/5000) Power over Ethernet (PoE) (R8S90A)
$17,555.00 -

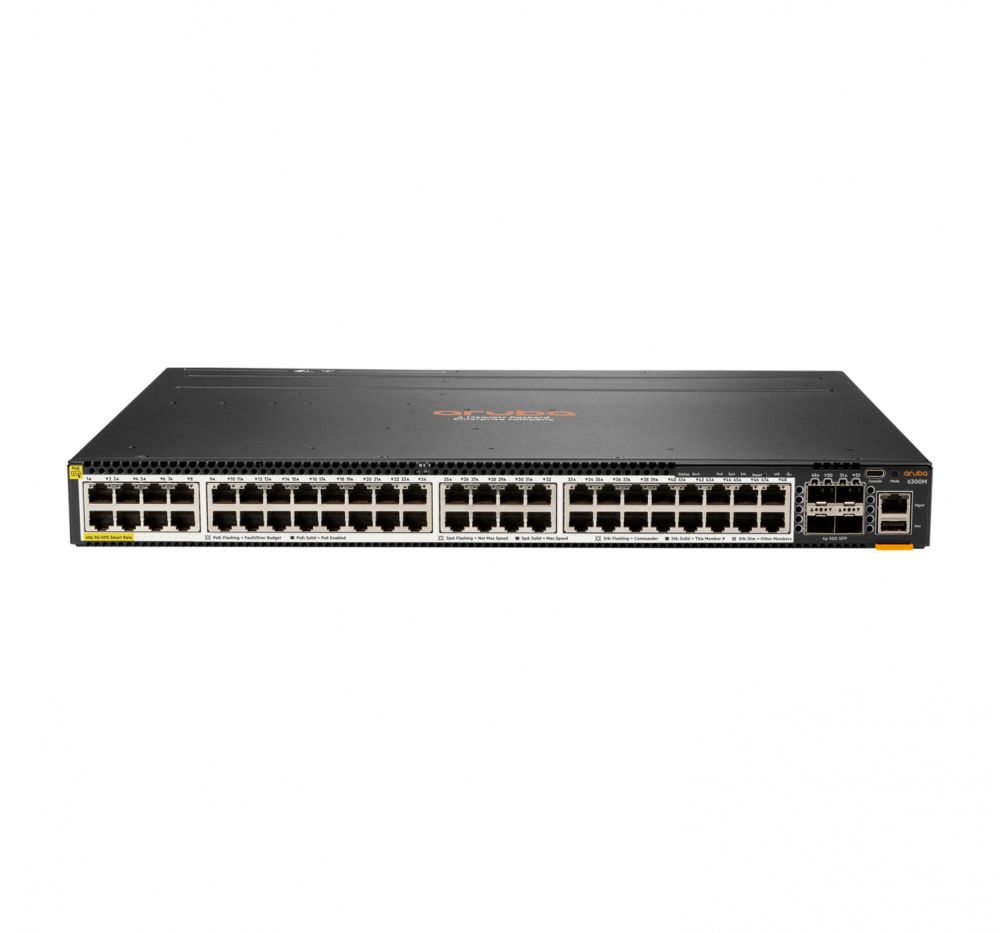

Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba 6300M Managed L3 Power over Ethernet (PoE) 1U Grey (JL659A)
$13,174.15 -
Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba 6300M Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey (JL661A)
$11,880.00 -
-
Hewlett Packard EnterpriseHPE R8Q71A network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) (R8Q71A)
$12,849.00 -
Hewlett Packard EnterpriseHewlett Packard Enterprise R8S89A network switch Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black (R8S89A)
$15,413.00 -
Aruba, a Hewlett Packard Enterprise companyAruba 6300M 48SR5 CL8/CL6 2P50G 2P10G SW Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black (R8S91A)
$16,268.00 -

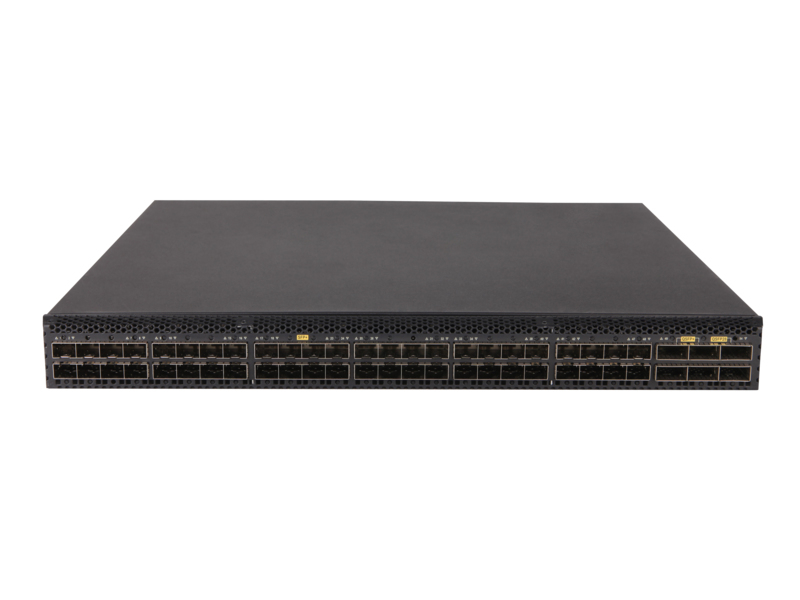

Hewlett Packard EnterpriseHewlett Packard Enterprise FlexFabric 5710 48SFP+ 6QSFP+/2QSFP28 Managed L3 None Black 1U (JL585A)
$18,819.00 -

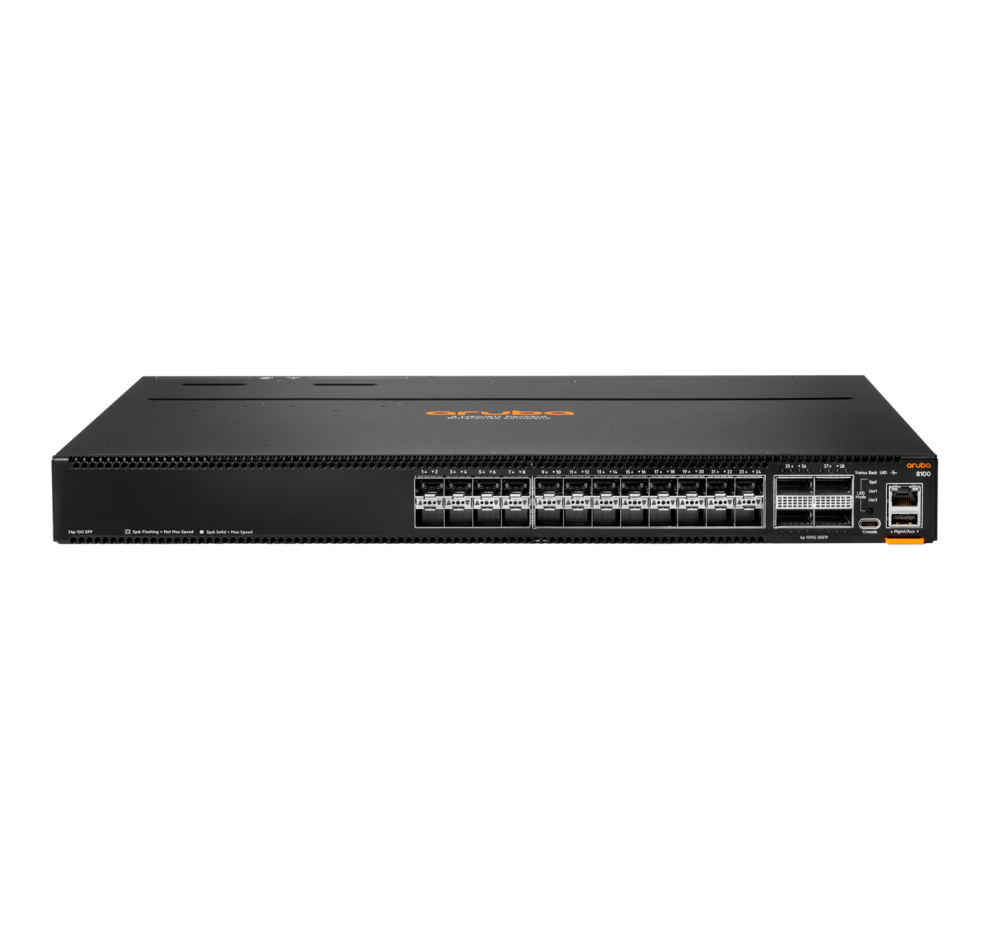

Hewlett Packard EnterpriseHPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU Managed L3 1U (R9W86A#ABA)
