Cambium Networks EX2010P Managed L2 Gigabit Ethernet (10/100/1000) Grey 1U Power over Ethernet (PoE)
Eligible for Free Shipping & Free Returns
MPN
MX-EX2010PXA-U
UPC
646444466127
Cambium Networks EX2010P Managed L2 Gigabit Ethernet (10/100/1000) Grey 1U Power over Ethernet (PoE)
Specifications
Management features
| Switch type | Managed |
| Switch layer | L2 |
| System event log | |
| User operation log | |
| Quality of Service (QoS) support | |
| ARP inspection | |
| Web-based management | |
| Configuring Location Settings (CLI) |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| USB 2.0 ports quantity | 1 |
Networking
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3u, IEEE 802.3x |
| Flow control support | |
| Broadcast storm control | |
| IGMP proxy | |
| Auto MDI/MDI-X |
Data transmission
| Switching capacity | 20 Gbit/s |
| Throughput | 20000 Mpps |
| MAC address table | 16384 entries |
| Number of static routes | 64 |
| Jumbo frames support |
Virtual LAN features
| VLAN support | |
| Number of VLANs | 4094 |
Security
| DHCP features | DHCPv6 snooping |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | |
| Password protection | |
| Authentication type | RADIUS |
| Access Control List (ACL) | |
| IGMP snooping | |
| Static port security | |
| SSH/SSL support |
Protocols
| Management protocols | SNMP v1, v2, and v3, SSH 1.5 and 2.0, RFC 4252: SSH, RFC 4253: SSH, • RFC 4254: SSH, RFC 4251: SSH, RFC 4716: SECSH, RFC 4419, SSL 3.0, RFC 2246, RFC 2818, RFC 3268 |
Design
| Rack mounting | |
| Stackable | |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Link, PoE |
Performance
| Mean time between failures (MTBF) | 338917.2 h |
Power
| Power supply included |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 100 W |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | 40 - 70 °C |
Weight & dimensions
| Width | 250 mm (9.75 ") |
| Depth | 210 mm (8.19 ") |
| Height | 44 mm (1.72 ") |
| Weight | 2086.52 g (4.6 lbs) |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
MX-EX2010PXA-U by Cambium Networks
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
Similar Products
View More-
-
-
-
-
Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba 6000 48G 4SFP Managed L3 Gigabit Ethernet (10/100/1000) 1U (R8N86A#ABA)
$733.00 -
-
Aruba, a Hewlett Packard Enterprise companyAruba, a Hewlett Packard Enterprise company Aruba Instant On 1960 24G 2XGT 2SFP+ Managed L2+ Gigabit Ethernet (10/100/1000) 1U White (JL806A)
$886.00 -
-
-
-
-
-
-
-

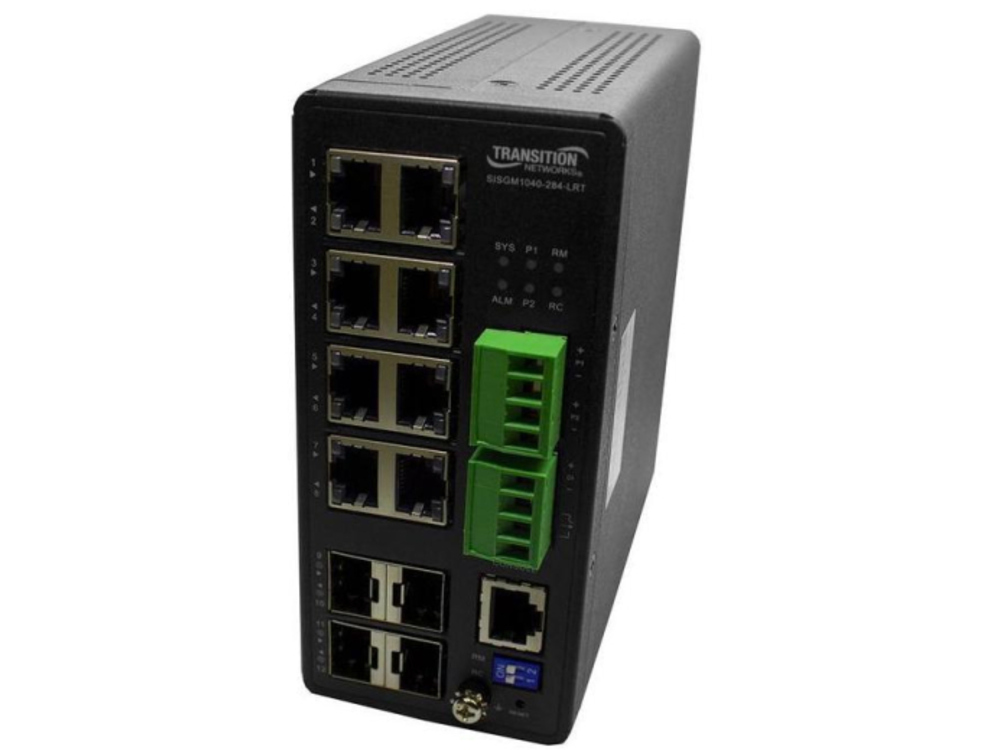

Transition NetworksTransition Networks Managed Hardened Gigabit Ethernet Switch SISGM1040284LRT
