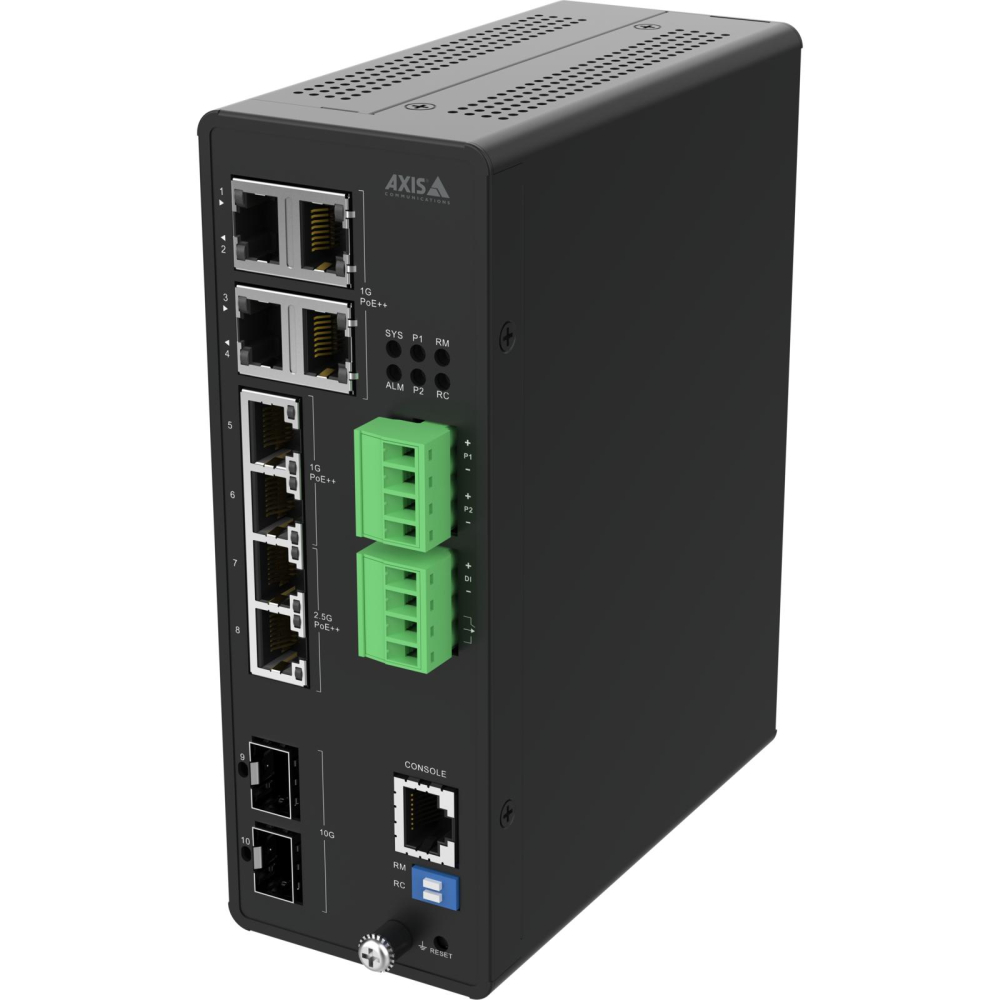

Axis T8504-E Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

In stock

Only 2 left

SKU

15_01449-001_1

Be the first to review this product

$1,476.00

Visit our Axis Store

MPN

01449-001

UPC

7331021063488

About this item

14.9 Mpps, 20 Gbps, 4x RJ-45 10Base-T/100Base-TX/1000Base-T, SFP, PoE+, 240x166x72 mm

Description
Specifications

AXIS T8504-E Outdoor PoE Switch gives you a quick, easy way to deploy outdoor cameras over long distances and keep your installation costs low. With an integrated SFP port, it’s perfect for fiber-based installation. It’s also a robust, low-upkeep solution – but if and when maintenance work is needed, remote management makes taking care of it a simple matter.

For long distance connections

AXIS T8504-E is specifically designed for fiber-optic connections, which are typically used in city surveillance, airports and other long distance installations. Made for the surveillance industry AXIS T8504-E is a perfect complement to both Axis solutions and third party products.

Easy to install and configure

Just like all Axis product, AXIS T8504-E is easy to install using standard Axis tools like AXIS Camera Management and AXIS IP utility. AXIS IP Utility even automatically discover and displays Axis devices on the network and helps you set the IP address of Axis network video products.
- Plug-and-play installation
- SFP port – for fiber installation
- Power over Ethernet (PoE)
- Up to 60 W per port (total 150 W)
- IP67 rating

Specifications

Management features

Switch type

Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	1
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T

Networking

Networking standards	IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at
10G support

Data transmission

Switching capacity	20 Gbit/s
Throughput	14.9 Mpps
MAC address table	8000 entries
Jumbo frames support
Jumbo frames	9216

Virtual LAN features

VLAN support

Security

Security algorithms	HTTPS, SNMP, SNMPv3, SSH
Password protection

Protocols

Supported network protocols

IPv4, IPv6, HTTP, HTTPS, Bonjour, SNMP v1/v2c/v3, DNS, TCP, UDP, IGMP, ICMP, ARP, SSH, RADIUS, TACACS, TELNET, Syslog, 802.1Q (VLAN)

Design

Product colour	White
Housing material	Aluminium
International Protection (IP) code	IP67
Safety	IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, EAC
Electromagnetic compatibility	EN 55032 B, EN 55024, FCC 15 B B, RCM AS/NZS CISPR 32 B, EN 61000-4-5 5, EN 50121-4, IEC 62236-4
Certification	IEC 60529 IP67, NEMA 250 4X, GR-1089-CORE 4 ITU-T K.20

Performance

Plug and Play

Power

Power connector	DC-in jack
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Surge protection
Surge protection voltage	6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	60 W
Total Power over Ethernet (PoE) budget	150 W

Operational conditions

Operating temperature (T-T)	-40 - 50 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 90 %
Storage relative humidity (H-H)	0 - 90 %

Weight & dimensions

Width	240 mm (9.36 ")
Depth	166 mm (6.47 ")
Height	72 mm (2.81 ")
Weight	2900 g (6.39 lbs)

Packaging content

User guide

Note: Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for 01449-001 by Axis you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
