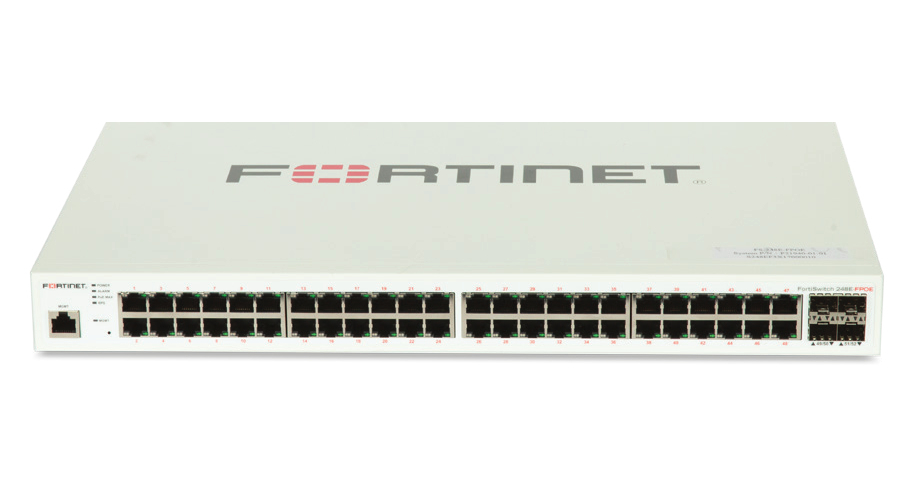

Fortinet FortiSwitch 248E-POE Managed L2 Gigabit Ethernet (10/100/1000) White 1U Power over Ethernet (PoE)
Eligible for Free Shipping & Free Returns
MPN
FS-248E-POE
UPC
842382125892
About this item
Layer 2/3 FortiGate switch controller compatible PoE+ switch with 48 GE RJ45 + 4 SFP ports, 24 port PoE with maximum 370 W limit
FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate ® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from
the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.
the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.
Specifications
Management features
| Switch type | Managed |
| Switch layer | L2 |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Gigabit Ethernet (copper) ports quantity | 48 |
Networking
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | |
| 10G support | |
| Auto MDI/MDI-X | |
| Link aggregation | |
| Port mirroring | |
| Spanning tree protocol | |
| Broadcast storm control | |
| Flow control support | |
| Virtual LAN features | Tagged VLAN |
Data transmission
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 155 Mpps |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 1 µs |
| Jumbo frames support |
Virtual LAN features
| VLAN support | |
| Number of VLANs | 4096 |
Multicast features
| Multicast support |
Security
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| BPDU filtering/protection | |
| IGMP snooping | |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
Design
| Rack mounting | |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Y |
| Certification | C, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
Performance
| Auto-negotiation | |
| Packet buffer memory | 1.5 MB |
Power
| Power consumption (typical) | 457.46 W |
| Power consumption (max) | 466.47 W |
| Power supply included | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | |
| Number of power supply units | 1 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Heat dissipation | 177.14268 BTU/h |
Weight & dimensions
| Width | 440 mm (17.16 ") |
| Depth | 410 mm (15.99 ") |
| Height | 44 mm (1.72 ") |
| Weight | 5500 g (12.13 lbs) |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
FS-248E-POE by Fortinet
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
