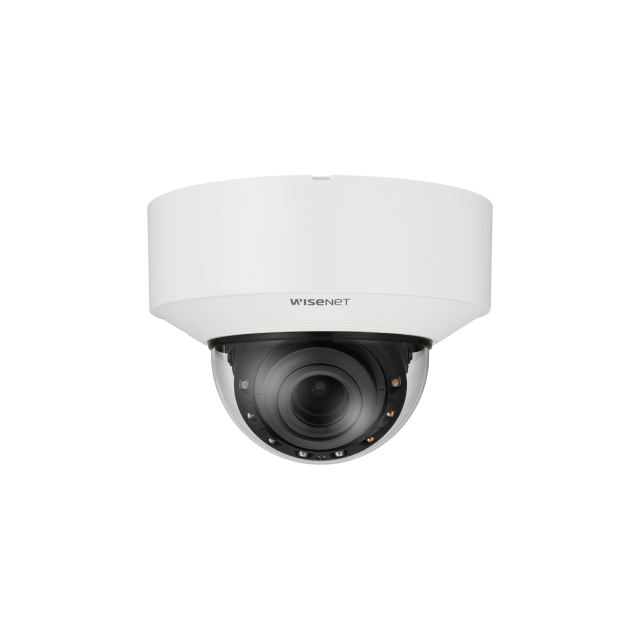

Hanwha XNV-8081RE security camera IP security camera Indoor & outdoor Dome 2560 x 1920 pixels Ceiling
In stock
Only 5 left
SKU
15_XNV-8081RE_1
Special Price
$1,361.00
Regular Price
$1,850.00
Eligible for Free Shipping & Free Returns
MPN
XNV-8081RE
About this item
5MP, 3.9~9.4mm(2.4x), 0.07Lux@F1.3, Day & Night (ICR), WDR, PoE+, PoE, IP66/IP67/IP6K9K, IK10+, NEMA4X
Wisenet PoE extender cameras are designed to save integrators time and money when adding additional cameras to existing installations. For new installations, integrators can plan to run two PoE cameras per cable run, also saving on the number of ports and number switches required as well. For retrofit applications where an additional camera is needed, simply replace the old camera with a PoE extender camera, then install and connect a new PoE camera.
Specifications
Performance
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Auto-tracking | |
| People counting function | |
| Wide Dynamic Range (WDR) | |
| Day/night mode | |
| Remote viewing | |
| Alarm input/output | |
| Number of languages | 17 |
| Languages support | CHI (SIMPL), CZE, DEU, DUT, ENG, ESP, FRE, GRE, HUN, JPN, KOR, POL, POR, RUS, SWE, TUR |
| Fog proof |
Design
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| IK code | IK10+ |
| International Protection (IP) code | IP66, IP67, IP69, IP69K |
| Housing material | Aluminium |
Video
| Maximum resolution | 2560 x 1920 pixels |
| Total megapixels | 5 MP |
| Video formats supported | H.264, H.265, M-JPEG |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 320 x 240,640 x 360,640 x 480 (VGA),720 x 480,720 x 576,800 x 448,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1600 x 1200 (UXGA),1920 x 1080 (HD 1080),2048 x 1536 (QXGA),2560 x 1440,2560 x 1920 |
| Noise reduction | |
| Video streaming | |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | |
| Image stabilizer | |
| Flip & mirror | |
| Highlight Compensation (HLC) | |
| Privacy masking | |
| Frame rate | 30 fps |
Camera
| Camera pan control | |
| Camera tilt control | |
| Minimum illumination | 0.07 lx |
| Viewing angle, horizontal | 92.1 ° |
| Viewing angle, vertical | 67.2 ° |
| Viewing angle, diagonal | 119.9 ° |
| Tilt angle range | -45 - 85 ° |
| Pan range | 0 - 360 ° |
| Auto flip | |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Angle of rotation | 355 ° |
| Camera shutter type | Electronic |
| Camera shutter speed | 2 - 1/12000 s |
Image sensor
| Number of sensors | 1 |
| Sensor type | CMOS |
| Optical sensor size | 1/1.8 " |
| Progressive scan |
Lens system
| Zoom capability | |
| Optical zoom | 2.4 x |
| Number of lenses | 1 |
| Focus | Motorized |
| Observe distance (tele) | 58 m |
| Recognize distance (wide) | 9.9 m |
| Recognize distance (tele) | 29 m |
| Detect distance (wide) | 49.4 m |
| Identify distance (wide) | 4.9 m |
| Detect distance (tele) | 146 m |
| Identify distance (tele) | 15 m |
| Observe distance (wide) | 19.7 m |
| Focal length range (f-f) | 3.9 - 9.4 mm |
| Closest focusing distance | 0.5 m |
Security
| Password protection | |
| Password protection type | User |
| HTTPS encryption | |
| IP address filtering | |
| Anti-flicker | |
| Video motion detection | |
| Motion sensor | |
| Security algorithms | 802.1x RADIUS, EAP-LEAP, EAP-TLS, HTTPS, SSL/TLS |
| Active tampering alarm | |
| Intelligent Video Surveillance (IVS) system features | Defocus, Face detection, People counting |
| Alert notification type |
Storage
| Card reader integrated | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Maximum memory card size | 512 GB |
| Flash memory | 256 MB |
Night vision
| Night vision | |
| Night vision distance | 50 m |
| LED type | IR |
Networking
| Ethernet LAN | |
| Networking standards | IEEE 802.3af |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Quality of Service (QoS) support | |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
Ports & interfaces
| Connectivity technology | Wired |
| USB port | |
| Microphone in | |
| Composite video out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Audio
| Sample rate | 16 kHz |
| Audio detection | |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.711 μ-law, G.726 |
Weight & dimensions
| Height | 125 mm (4.88 ") |
| Diameter | 180 mm |
| Weight | 1750 g (3.86 lbs) |
Power
| Power source type | PoE |
| Power consumption (max) | 25.5 W |
| Power consumption (typical) | 10.2 W |
| Power consumption (Power over Ethernet (PoE)) | 12.95 W |
Operational conditions
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -50 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90 % |
| Storage relative humidity (H-H) | 0 - 90 % |
Packaging content
| Number of cameras | 1 |
