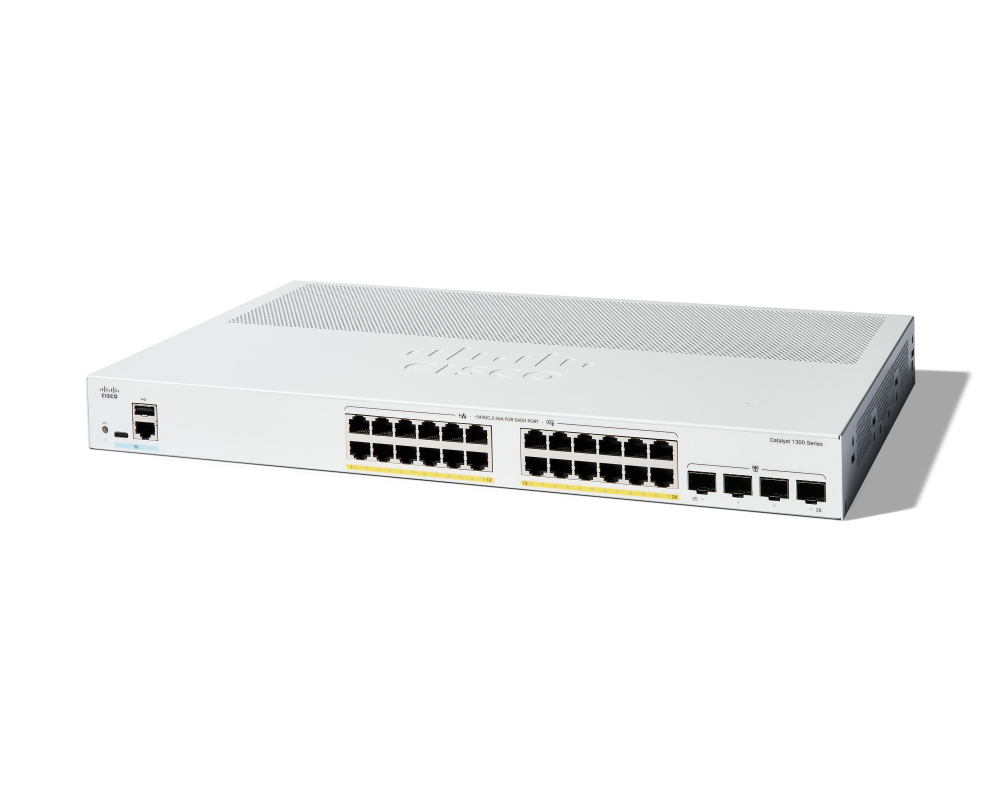

Cisco Catalyst 1300-24P-4X Managed Switch, 24 Port GE, PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24P-4X)

In stock

SKU

14_C1300-24P-4X_1

Be the first to review this product

$978.00

Visit our Cisco Store

MPN

C1300-24P-4X

UPC

889728521529

About this item

Catalyst 1300-24P-4X Managed Switch, 24 Port GE, PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24P-4X)

Description
Specifications

The Cisco Catalyst 1300-24T-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.

Specifications

Management features

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support
Reset button
Configuring Location Settings (CLI)
MIB support	Y
Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
Console port	RJ-45/USB Type-C

Networking

Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported	Cat5e
Head-of-line (HOL) blocking
QinQ implementation	Selective QinQ
Broadcast storm control
Policy-based routing
Spanning tree protocol
Port mirroring
IGMP proxy
Link aggregation
Rate limiting
Virtual LAN features	Private VLAN, Voice VLAN

Data transmission

Switching capacity	128 Gbit/s
MAC address table	16000 entries
Number of queues	8
Static route
Number of static routes	990
Jumbo frames support
Jumbo frames	9000

Virtual LAN features

VLAN support

Multicast features

Multicast support

Security

DHCP features	DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
SSH/SSL support
IGMP snooping
DoS attack prevention
Access Control List (ACL)
Authentication type	RADIUS, TACACS+
Queue scheduling algorithms	Weighted Round Robin (WRR)
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
Authentication	MAC-based authentication, Web-based authentication
Access Control List (ACL) rules	1024

Protocols

GARP VLAN Registration Protocol (GVRP)
IPv4 & IPv6 features	ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet

Design

Rack mounting
Product colour	Grey
Certification	UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Performance

Processor frequency	1.4 MHz
Flash memory	512 MB
Memory type	DDR4-SDRAM
Packet buffer memory	1.5 MB
Internal memory	1000 MB
Plug and Play
Mean time between failures (MTBF)	698220 h

Power

Power source	AC
Power consumption (typical)	31.8 W
AC input voltage	100 - 220 V
AC input frequency	50/60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	195 W

Operational conditions

Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %
Heat dissipation	804.1 BTU/h

Weight & dimensions

Width	298.704 mm (11.65 ")
Depth	444.5 mm (17.34 ")
Height	43.942 mm (1.71 ")
Weight	3680 g (8.11 lbs)

Packaging data

Package width	430.022 mm
Package depth	575.056 mm
Package height	105.918 mm
Package weight	5986.39 g

Other features

Packaging content
Country of origin	China
	Y

Note: Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for C1300-24P-4X by Cisco you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
