Cisco Catalyst 1300-48P-4G Managed Switch, 48 Port GE, PoE, 4x1GE SFP, Limited Lifetime Protection (C1300-48P-4G)
Eligible for Free Shipping & Free Returns
MPN
C1300-48P-4G
UPC
889728521987
About this item
Catalyst 1300-48P-4G Managed Switch, 48 Port GE, PoE, 4x1GE SFP, Limited Lifetime Protection (C1300-48P-4G)
The Cisco Catalyst 1300-48P-4G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.
Specifications
Management features
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | |
| MIB support | Y |
| Configuring Location Settings (CLI) | |
| Web-based management | |
| Reset button |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45/USB Type-C |
Networking
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Cable types supported | Cat5e |
| Head-of-line (HOL) blocking | |
| Broadcast storm control | |
| QinQ implementation | Selective QinQ |
| Policy-based routing | |
| Port mirroring | |
| Spanning tree protocol | |
| Link aggregation | |
| IGMP proxy | |
| Rate limiting | |
| Virtual LAN features | Private VLAN, Voice VLAN |
Data transmission
| Switching capacity | 104 Gbit/s |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Static route | |
| Number of static routes | 990 |
| Jumbo frames support | |
| Jumbo frames | 9000 |
Virtual LAN features
| VLAN support |
Multicast features
| Multicast support |
Security
| DHCP features | DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| SSH/SSL support | |
| Authentication | MAC-based authentication, Web-based authentication |
| Access Control List (ACL) rules | 1024 |
| IGMP snooping | |
| DoS attack prevention | |
| Authentication type | RADIUS, TACACS+ |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2 |
| Access Control List (ACL) | |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
Protocols
| GARP VLAN Registration Protocol (GVRP) | |
| IPv4 & IPv6 features | ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet |
Design
| Rack mounting | |
| Product colour | Grey |
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Performance
| Processor frequency | 1.4 MHz |
| Memory type | DDR4-SDRAM |
| Noise level | 37.3 dB |
| Packet buffer memory | 3 MB |
| Internal memory | 1000 MB |
| Plug and Play | |
| Flash memory | 512 MB |
| Mean time between failures (MTBF) | 856329 h |
Power
| Power source | AC |
| Power consumption (typical) | 43.93 W |
| AC input voltage | 100 - 220 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 375 W |
Operational conditions
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 10 - 90 % |
| Heat dissipation | 1542.3 BTU/h |
Weight & dimensions
| Width | 350.012 mm (13.65 ") |
| Depth | 444.5 mm (17.34 ") |
| Height | 43.942 mm (1.71 ") |
| Weight | 5430 g (11.97 lbs) |
Packaging data
| Package width | 480.822 mm |
| Package depth | 571.754 mm |
| Package height | 94.996 mm |
| Package weight | 7011.34 g |
Other features
| Packaging content | |
| Country of origin | China |
| Y |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
C1300-48P-4G by Cisco
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
Similar Products
View More-
-
Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba 6200F 24G 4SFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U (JL724A#ABA)
$1,395.00 -
Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba 6200F 48G 4SFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U (JL726A#ABA)
$1,444.00 -
-
-

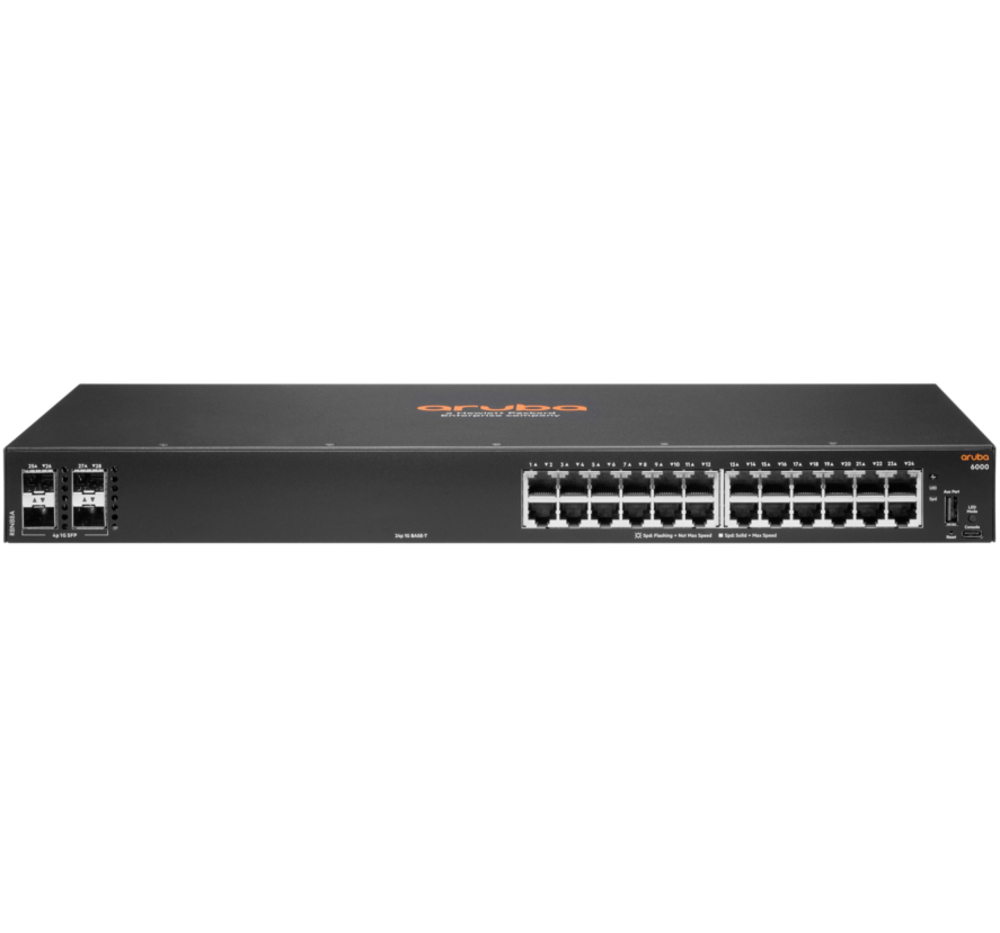

Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba 6000 24G 4SFP Managed L3 Gigabit Ethernet (10/100/1000) 1U (R8N88A#ABA)
