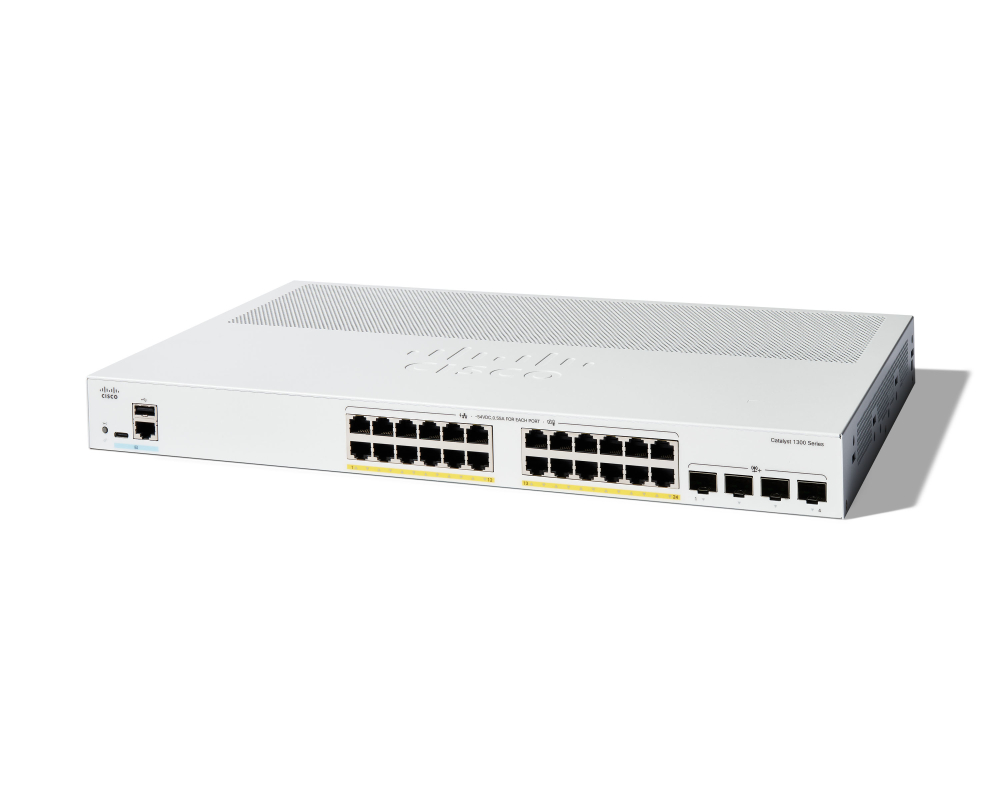

Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)
Eligible for Free Shipping & Free Returns
MPN
C1300-24FP-4X
About this item
Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)
The Cisco Catalyst 1300-24FP-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.
Specifications
Management features
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | |
| MIB support | Y |
| Configuring Location Settings (CLI) | |
| Reset button | |
| Web-based management |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Console port | RJ-45/USB Type-C |
Networking
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Cable types supported | Cat5e |
| Head-of-line (HOL) blocking | |
| Policy-based routing | |
| Port mirroring | |
| Link aggregation | |
| Spanning tree protocol | |
| IGMP proxy | |
| Rate limiting | |
| Broadcast storm control | |
| QinQ implementation | Selective QinQ |
| Virtual LAN features | Private VLAN, Voice VLAN |
Data transmission
| Switching capacity | 128 Gbit/s |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Static route | |
| Number of static routes | 990 |
| Jumbo frames support | |
| Jumbo frames | 9000 |
Virtual LAN features
| VLAN support |
Multicast features
| Multicast support |
Security
| DHCP features | DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| IGMP snooping | |
| DoS attack prevention | |
| Authentication type | RADIUS, TACACS+ |
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2 |
| Access Control List (ACL) | |
| Authentication | MAC-based authentication, Web-based authentication |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Access Control List (ACL) rules | 1024 |
| SSH/SSL support |
Protocols
| GARP VLAN Registration Protocol (GVRP) | |
| IPv4 & IPv6 features | ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet |
Design
| Rack mounting | |
| Product colour | Grey |
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Performance
| Processor frequency | 1.4 MHz |
| Memory type | DDR4-SDRAM |
| Packet buffer memory | 1.5 MB |
| Noise level | 34.8 dB |
| Plug and Play | |
| Flash memory | 512 MB |
| Internal memory | 1000 MB |
| Mean time between failures (MTBF) | 698220 h |
Power
| Power source | AC |
| Power consumption (typical) | 40.9 W |
| AC input voltage | 100 - 220 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 375 W |
Operational conditions
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 10 - 90 % |
| Heat dissipation | 1548.8 BTU/h |
Weight & dimensions
| Width | 350.012 mm (13.65 ") |
| Depth | 444.5 mm (17.34 ") |
| Height | 43.942 mm (1.71 ") |
| Weight | 4600 g (10.14 lbs) |
Packaging data
| Package width | 512.064 mm |
| Package depth | 575.056 mm |
| Package height | 107.95 mm |
| Package weight | 7183.67 g |
Other features
| Packaging content | |
| Country of origin | China |
| Y |
