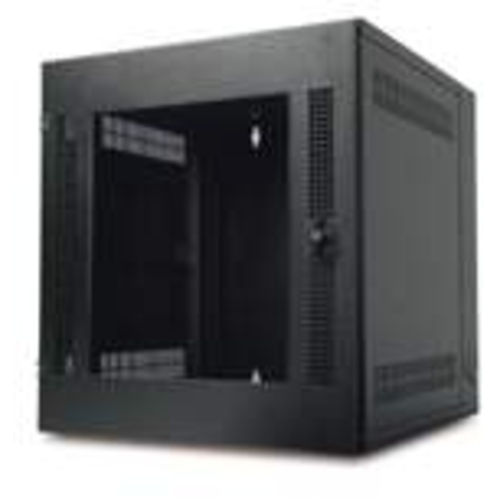

Panduit PZWMC18W rack cabinet 18U Wall mounted rack

The PanZone Wall Mount Cabinet is an 18-U wall mount cabinet that measures 34" x 25" x 25" (HxWxD) with adjustable rails, a window door, and can support 300lbs of weight

It has hinged doors on both the front and back so that networking equipment can be easily moved, added to, and changed.

Access to cable routing is provided by removable side panels

This enclosure uses a climate control system to keep various networking equipment at a proper temperature.

Maximum Load Capacity of the 18 RU enclosure is 300.04 lb.

Panduit wall rack PanZone are zone cabling solutions capable of connecting anywhere from 96 to 208 users in applications where telecommunication rooms are not available, or where security is an issue.

Cable management and routing are available in two options inside the cabinet.

For high-density applications, the horizontal slack manager operates between the active network switch and patch panel to manage patch cords. A special benefit of this method is the increased airflow and cooling of PoE equipment.

Second, you can use horizontal cable managers located adjacent to the patch panels to route the patch cords, while any slack should be bundled in the vertical channels of the cabinet. Support for network equipment up to 26.8" deep is provided by optional rear equipment rails, allowing for greater flexibility.
