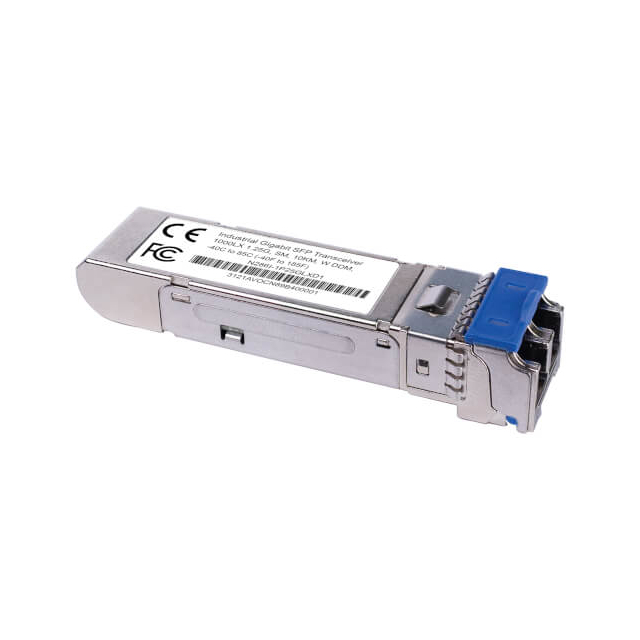

Tripp Lite Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, Singlemode LC, 1310 nm, 10 km

SFP Transceiver Designed for Connection to Your Cisco Network Switch or Server

This SFP transceiver allows you to connect an 8.3/125 singlemode fiber optic cable to a 10/100/1000 Mbps network router, server or switch. It transmits data up to 10 kilometers (6.2 miles) and supports bi-directional Gigabit Ethernet communication up to 1.25 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Functionally Equivalent to Cisco GLC-LH-SMD Transceiver Module

The MSA-compliant N286-01GLCLHSMD functions just like the equivalent Cisco GLC-LH-SMD transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the GLC-LH-SMD.

Hot-Swappable for Installation Without Network Interruption

This input/output device is fully hot-swappable, so you can install it without a potentially costly 10/100/1000 Mbps network shutdown or device reboot. Just plug the SFP end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with singlemode fiber optic cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.

Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring

DDM support lets you keep track of various operating statuses in real time, including transceiver temperature, input and output power, and supply voltage.

Typical Application

● Install an additional LC duplex port on a Cisco router, server or switch for the purpose of connecting a singlemode Gigabit Ethernet network cable

Introduction Bullets

● SFP transceiver module 100% compatible with Cisco’s equivalent module ● Provides 1 Gbps throughput up to 10 km (6.2 mi.) via singlemode fiber cabling ● LC duplex female connector supports 1000Base-LX/LH signal at 1310 nm wavelength ● Hot-swappable interface lets you install and uninstall without shutting down ● Supports DDM for monitoring temperature and other real-time operating parameters

System Requirements

● Cisco or other compatible network router, server or switch

Package Includes

● N286-01GLCLHSMD Cisco-Compatible GLC-LH-SMD SFP Transceiver ● Quick Start Guide
