Axis P5654-E Mk II 60HZ Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Out of stock
SKU
6_02915-001_1
$1,850.00
MPN
02915-001
UPC
331021086272

About this item
1/2.8", CMOS, FullHD, 60 fps, IP66, IK10, Poe, 16W

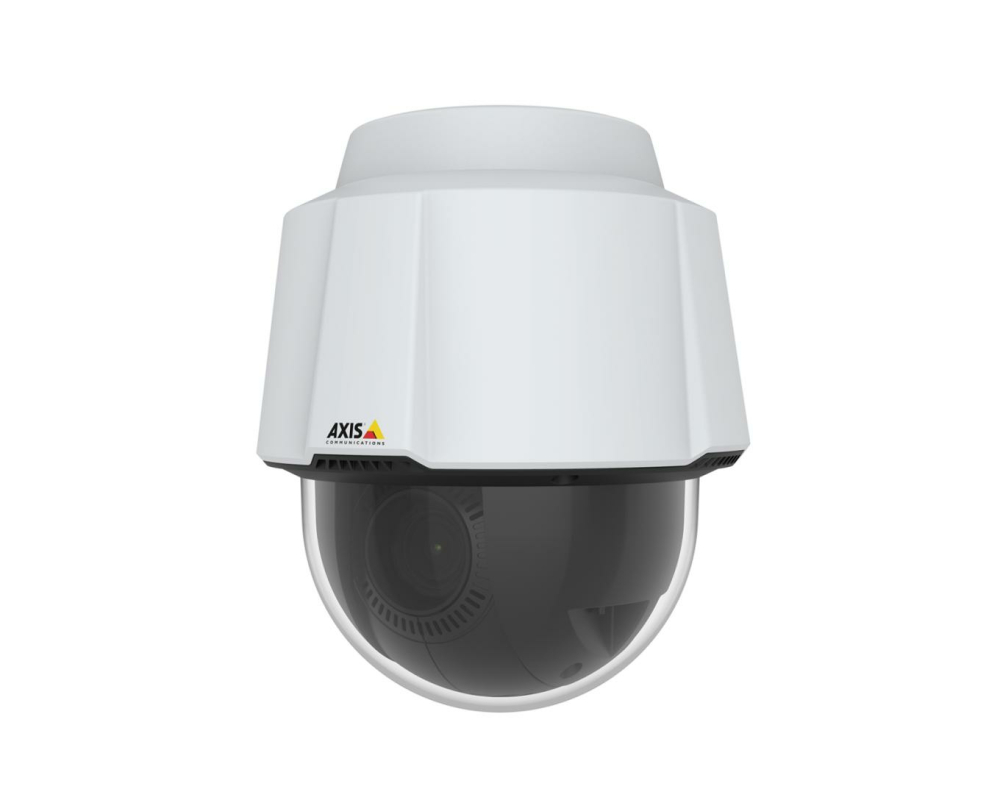

AXIS P5654-E Mk II PTZ Camera


This cost-effective PTZ camera offers great image quality in HDTV 1080p and wide area coverage with 77° field of view. Plus, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.


Great images – anytime


AXIS P5654-E MK II delivers great image quality in HDTV 1080p with 21x optical zoom. It offers wide area coverage with a 77° field of view. So, you’ll benefit from a sharp overview and great detail even in mixed and low light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. And electronic image stabilization (EIS) ensures stable images despite vibration. Including four scene profiles with different image settings, it’s optimized to suit specific scenarios. Furthermore, focus recall gives you instant focus even in challenging light conditions.


Keeping you secure


Built on the ARTPEC 7 system-on-chip, this PTZ camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. For instance, signed firmware and secure boot guarantee that the firmware hasn’t been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.


And there’s more…


This versatile camera offers support for advanced analytics. Thanks to Axis Object Analytics it can detect and classify people and vehicles- all tailored to specific needs. Featuring shock detection, the camera will send an alarm when it has been hit. And Advanced Gatekeeper will automatically zoom in on objects detected in pre-defined areas. Axis Zipstream technology with H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, with IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can also handle temperatures ranging from -30°C to 50°C (-22°F to 122°F).

Specifications
Performance
Type IP security camera
Placement supported Indoor & outdoor
PTZ control (Pan/Tilt/Zoom)
Auto-tracking
Preset points
Wide Dynamic Range (WDR)
Day/night mode
Infrared (IR) cut-off filter
Design
Form factor Dome
Product colour Black, White
Mounting type Ceiling
Housing material Aluminium, Polycarbonate (PC)
International Protection (IP) code IP66
IK code IK10
Video
Maximum resolution 1920 x 1080 pixels
Video formats supported AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions 320 x 180
Supported video modes 1080p
Image stabilizer
Frame rate 60 fps
Text caption overlay
Image quality adjustment Brightness, Contrast, Saturation, Sharpness
Video streaming
Camera
Camera pan control
Camera tilt control
Minimum illumination 0.01 lx
Lens viewing angle, horizontal 77 - 3.6 u00b0
Lens viewing angle, vertical 43.1 - 2 u00b0
Tilt angle range 0 - 180 u00b0
Tilt speed 350 °/sec
Pan range 0 - 360 u00b0
Pan speed 350 °/sec
Camera shutter speed 1/66500 - 2 s
Image sensor
Number of sensors 1
Sensor type CMOS
Optical sensor size 1/2.8 "
Lens system
Zoom capability
Optical zoom 21 x
Digital zoom 12 x
Number of lenses 1
Maximum aperture number 4.5
Auto focus
Minimum aperture number 1.6
Observe distance (tele) 450 m
Recognize distance (wide) 11 m
Recognize distance (tele) 225 m
Detect distance (wide) 57 m
Identify distance (wide) 6 m
Detect distance (tele) 1120 m
Identify distance (tele) 110 m
Observe distance (wide) 23 m
Focal length range (f-f) 4 - 84.6 mm
Security
Human and vehicle targets classification
Security algorithms EAP-TLS, HTTPS, TLS
Alert notification type E-mail
Video motion detection
Pixel counter
Intelligent Video Surveillance (IVS) system features Crossing line, Face detection, Human detection, Moving object, Vehicle detection
Storage
Card reader integrated
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory 512 MB
ROM capacity 1024 MB
Networking
Ethernet LAN
Ethernet interface type Fast Ethernet
Networking standards IEEE 802.3at
Supported network protocols IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Streaming method Multicast
Quality of Service (QoS) support
Ports & interfaces
Connectivity technology Wired
Ethernet LAN (RJ-45) ports 1
Weight & dimensions
Width 188 mm (7.33 ")
Depth 188 mm (7.33 ")
Height 217 mm (8.46 ")
Weight 2500 g (5.51 lbs)
Power
Power source type PoE
Power consumption (typical) 8 W
Power consumption (max) 16 W
Certificates
Certification UL/cUL, UKCA, CE, KC, EAC, RCM, TAA
Operational conditions
Operating temperature (T-T) -30 - 50 °C
Storage temperature (T-T) -40 - 65 °C
Operating relative humidity (H-H) 10 - 100 %
Storage relative humidity (H-H) 5 - 95 %
Features
License plate recognition
Packaging content
Mounting kit
Number of cameras 1
Technical details
Doesn't contain PVC
Other features
REACH, RoHS
