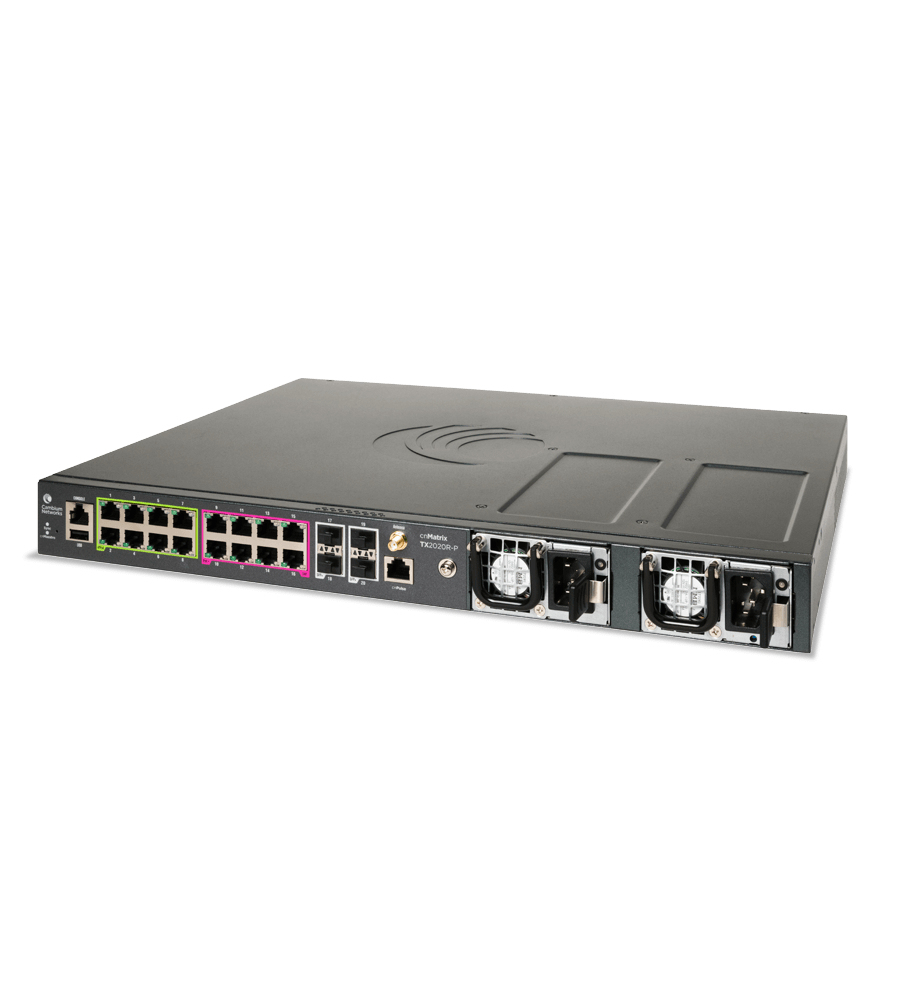

Cambium Networks cnMatrix TX2012R-P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
MPN
MXTX2012GXPA10
About this item
cnMatrix TX2012R-P - Intelligent Ethernet PoE Switch, Cambium Sync, 8 x 1 Gbps, and 4 SFP+, Removable Power Supply (not included) - no pwr cord
cnMatrix TX provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE and Cambium synchronization in a single box solution that is easy to install and manage while improving network performance.
Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.
Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.
Specifications
Management features
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | |
| Reset button |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
Networking
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| 10G support | |
| Broadcast storm control | |
| Port mirroring | |
| Flow control support | |
| IGMP entries | 256 |
| Link aggregation | |
| IGMP proxy |
Data transmission
| Throughput | 96 Gbit/s |
| Forwarding rate | 120 Mpps |
| MAC address table | 16000 entries |
| Static route | |
| Number of static routes | 64 |
| Jumbo frames support | |
| Jumbo frames | 9000 |
Virtual LAN features
| VLAN support | |
| Number of VLANs | 4000 |
Multicast features
| Multicast support |
Security
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping |
| SSH/SSL support | |
| Access Control List (ACL) | |
| IGMP snooping | |
| MAC address filtering |
Protocols
| Management protocols | SNMP v1/v2/v3 |
Design
| Rack mounting |
Performance
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Mean time between failures (MTBF) | 393648 h |
Power
| Power supply included | |
| Redundant power supply (RPS) support | |
| Number of power supply units | 1 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
Operational conditions
| Operating temperature (T-T) | -10 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 55 - 95 % |
Weight & dimensions
| Width | 260 mm (10.14 ") |
| Depth | 250 mm (9.75 ") |
| Height | 44 mm (1.72 ") |
| Weight | 2240 g (4.94 lbs) |
Packaging data
| Package width | 375 mm |
| Package depth | 315 mm |
| Package height | 92 mm |
| Package weight | 2730 g |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
MXTX2012GXPA10 by Cambium Networks
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
