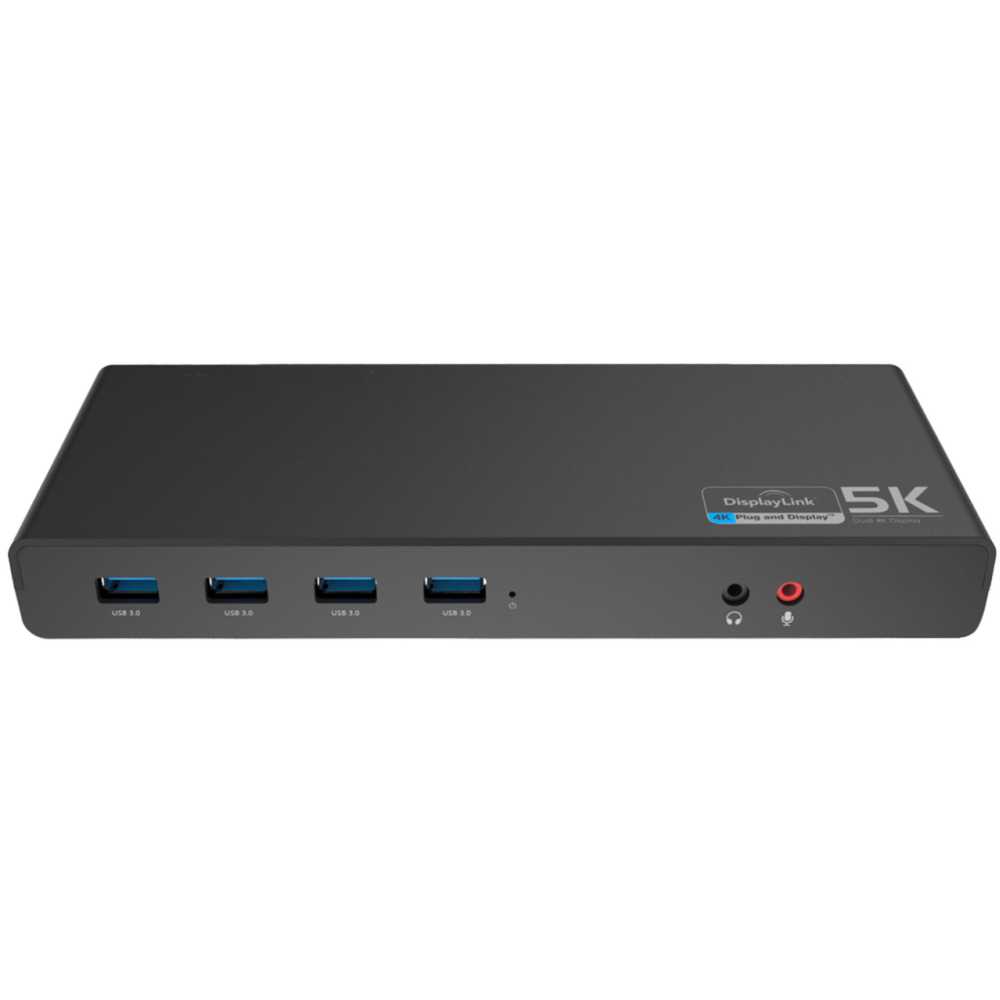

Siig JU-DK0J11-S1 notebook dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C

SKU

9_JU-DK0J11-S1_1

Be the first to review this product

$156.00

Visit our SIIG Store

MPN

JU-DK0J11-S1

UPC

662774044064

High Performance

Expand multiple connectivity ports to your USB-C with DP Alt mode or Thunderbolt 3 enabled mac or Windows PC to increase your efficiency. This Universal Hybrid Dual 4K Video Docking Station is fully certified to meet DisplayLink certification. DisplayLink graphics technology works with any computer, connector types and connect multiple displays functionality to increase in work productivity. Compatible with USB-A, USB-C, etc.

Connect DisplayLink controlled DisplayPort or HDMI output:

Supports one single 5K (5120x2880) @60Hz display via 2 DisplayPort ports, or two 4K (4096x2160) @60Hz Ultra HD displays via DP/HDMI or DP/DP or HDMI/HDMI, or one single 4K (4096x2160) @60Hz display (DP or HDMI) Connect one DisplayPort or HDMI 4K@30Hz display via USB-C DP 1.2 Alt mode output (USB-C DP 1.4 Alt mode output supports 4K@60Hz display)

Multiple Connectivity Ports

Adds one USB-C port with PD 100W (Host), one DisplayPort video output port (with USB-C DP Alt mode), two DisplayPort video output ports (with DisplayLink controlled), one HDMI video output (with USB-C DP Alt mode), two HDMI video output ports (with DisplayLink controlled), six USB-A 3.0 output ports, one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone)

SuperSpeed Data Transfer

Provides six USB-A 3.0 ports and data transfer rate up to 5Gbps; enhance your laptop's connectivity options and performance capabilities

100W Power Delivery

Includes high quality USB-C 20V/5A cable for connection to laptop/notebook, supports up to 100W Power Delivery charging for laptop, notebook, tablet, and smartphone. The included 135W power adapter ensures enough power for laptop charging and USB peripherals

1G Ethernet Data Transmission

Reliable wired network connectivity through embedded 10/100/1000 Base-T Gigabit Ethernet port

3.5mm Audio Jack

Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection

ABS Housing Design

Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency. Built-in LED provides easy recognition of power status

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.0 (3.1 Gen 1) Type-A ports quantity	6
USB Power Delivery (revision 2.0)
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Combo headphone/mic port
DC-in jack
Microphone in

Networking

Ethernet LAN
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Performance

Housing material

Acrylonitrile butadiene styrene (ABS)

Power

Power source type	AC
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Output current	6.75 A
Output voltage	20 V

Design

Product colour	Black
Country of origin	Thailand

Software

Windows operating systems supported	Windows 10
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %

Weight & dimensions

Width	85 mm (3.32 ")
Depth	199.8 mm (7.79 ")
Height	29.9 mm (1.17 ")
Weight	308.4 g (0.68 lbs)

Packaging content

Quantity per pack	1 pc(s)
User guide
Drivers included
Cables included	USB Type-C
AC adapter included

Other features

1.2
