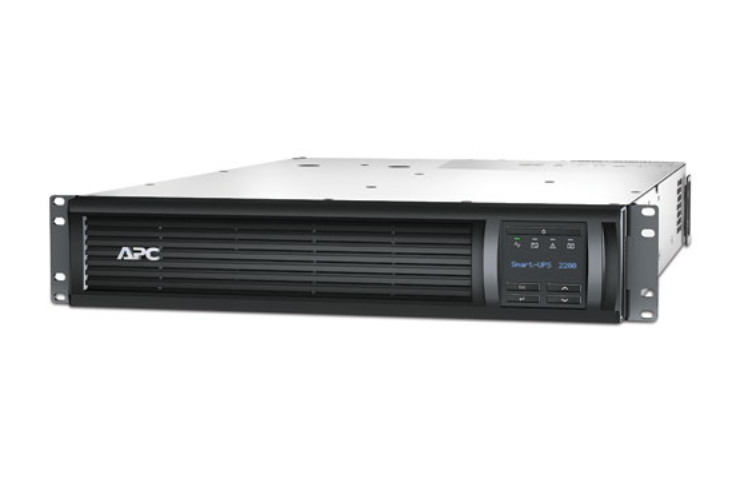

APC Smart-UPS uninterruptible power supply (UPS) 1920 VA 10 AC outlet(s)
MPN
SMT2200US
UPC
731304305620
About this item
1920W, 1920VA, 120V, SmartSlot, 8 x NEMA 5-15R & 2 x NEMA 5-20R Out, NEMA 5-20P In, LCD
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
StruxureWare Central compatible
Enables centralized management via StruxureWare Central.
High online efficiency
Reduces utlility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
Power
| Output power capacity | 1920 VA |
| Output power | 1920 W |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 154 V |
| Power supply input frequency | 50/60 Hz |
| Surge energy rating | 530 J |
| Efficiency | 98 % |
| Emergency Power Off (EPO) | |
| Output voltage THD | 5 % |
Ports & interfaces
| AC outlet types | NEMA 5–15R, NEMA 5–20R |
| Power plug | NEMA 5-20P |
| Cable length | 1.83 m |
| AC outlets quantity | 10 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Typical backup time at half load | 22.5 min |
| Typical backup time at full load | 7.5 min |
| Battery replacement alarms | Audible |
| Replacement battery cartridge | RBC55 |
Design
| Form factor | Tower |
| Product colour | Black |
| Display | LCD |
Performance
| Waveform | Sine |
| Noise level | 45 dB |
| Audible alarm(s) |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
Certificates
| RoHS compliance | |
| Energy Star certified |
Weight & dimensions
| Width | 196 mm (7.64 ") |
| Depth | 544 mm (21.22 ") |
| Height | 432 mm (16.85 ") |
| Weight | 50910 g (112.24 lbs) |
| Package weight | 60910 g |
Other features
| Package dimensions (WxDxH) | 381 x 762 x 559 mm |
| Nominal input voltage | 120 V |
| Output connection type | 8 x NEMA 5-15R & 2 x NEMA 5-20R |
| Nominal output voltage | 120 V |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
SMT2200US by APC
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
