TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
MPN
TL-SG105MPE
UPC
840030708527
About this item
5 x 10/100/1000Mbps RJ45, 10 Gbps, 7.44 Mpps, 2K MAc, 16 KB Jumbo, 99.8 × 98 × 25 mm
5 x 10/100/1000Mbps RJ45, 10 Gbps, 7.44 Mpps, 2K MAc, 16 KB Jumbo, 99.8 × 98 × 25 mm
Specifications
Management features
| Switch layer | L2 |
| Web-based management |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Networking
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Rate limiting | |
| Port mirroring | |
| Broadcast storm control | |
| 10G support |
Data transmission
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.44 Mpps |
| MAC address table | 2000 entries |
| Static route | |
| Jumbo frames support | |
| Jumbo frames | 16 |
Security
| IGMP snooping | |
| Loop protection |
Design
| Rack mounting | |
| Product colour | Black |
Power
| Power consumption (max) | 137.01 W |
| AC input voltage | 100 - 240 V |
| Power supply included | |
| AC input frequency | 50/60 Hz |
| DC input voltage | 53.5 V |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 95 % |
Weight & dimensions
| Width | 99.8 mm (3.89 ") |
| Depth | 98 mm (3.82 ") |
| Height | 25 mm (0.98 ") |
Packaging content
| Cables included | LAN (RJ-45) |
Other features
| DC/PoE |
Note:
Please be aware that availability, promotions, and descriptions may change without notice, but you can feel confident knowing that the price for
TL-SG105MPE by TP-LINK
you see now, is the price you pay. If you have any questions, our customer care team is available to assist you.
Similar Products
View More-
-
-
-

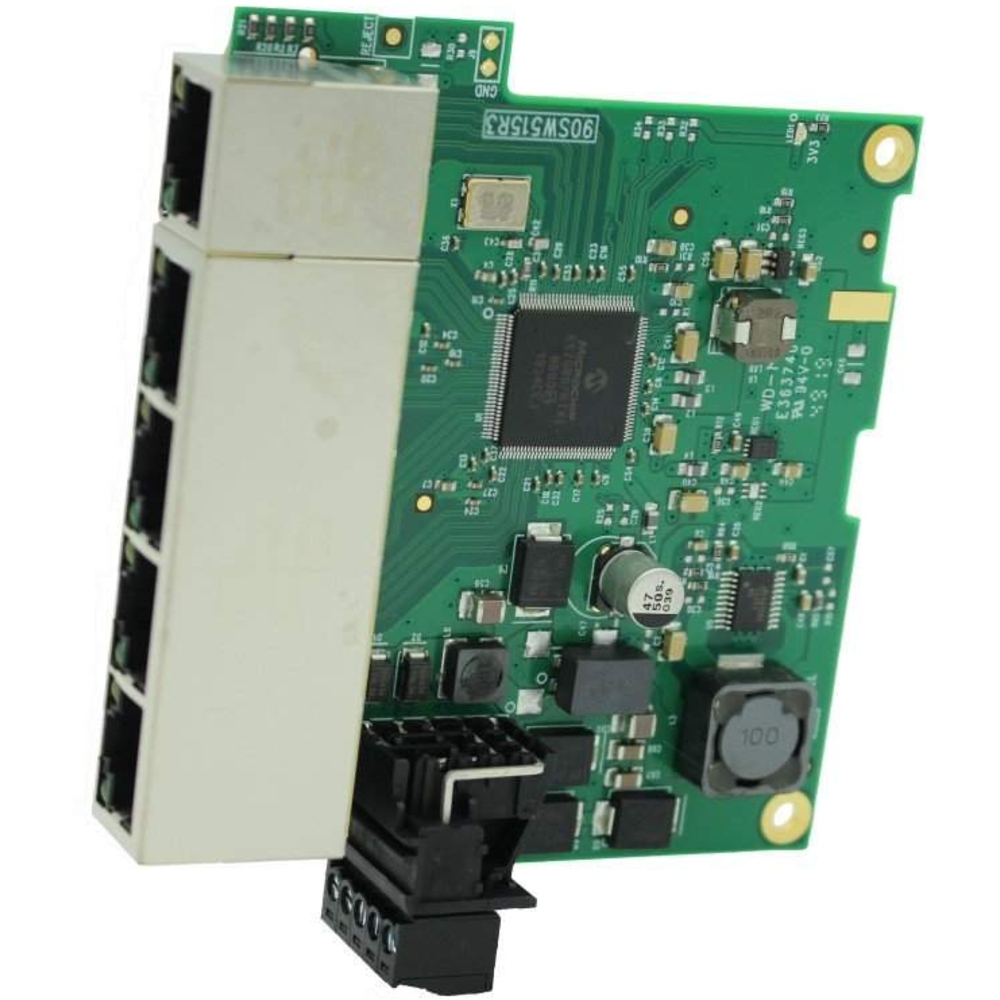

CyberData SystemsCyberData Systems 011236 Gigabit Ethernet (10/100/1000) Grey network switch (CD-011236)
$133.00 -

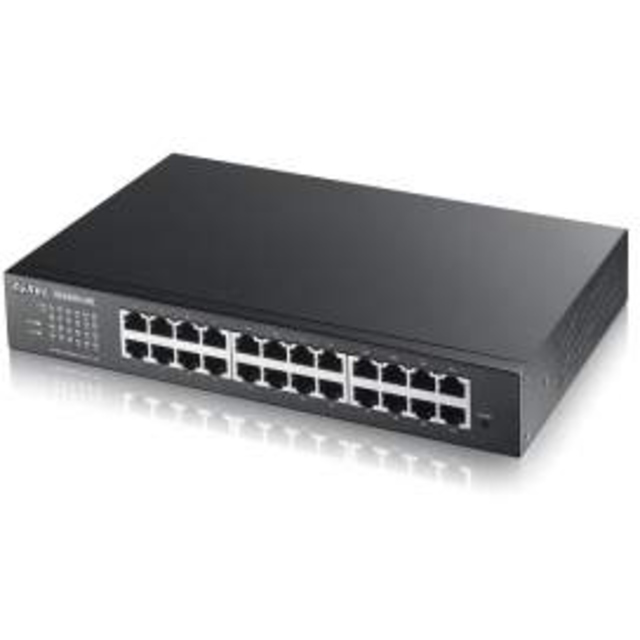

Hewlett Packard EnterpriseHewlett Packard Enterprise Aruba Instant On 1930 Managed L2+ Gigabit Ethernet (10/100/1000) White 1U (JL680A#ABA)
