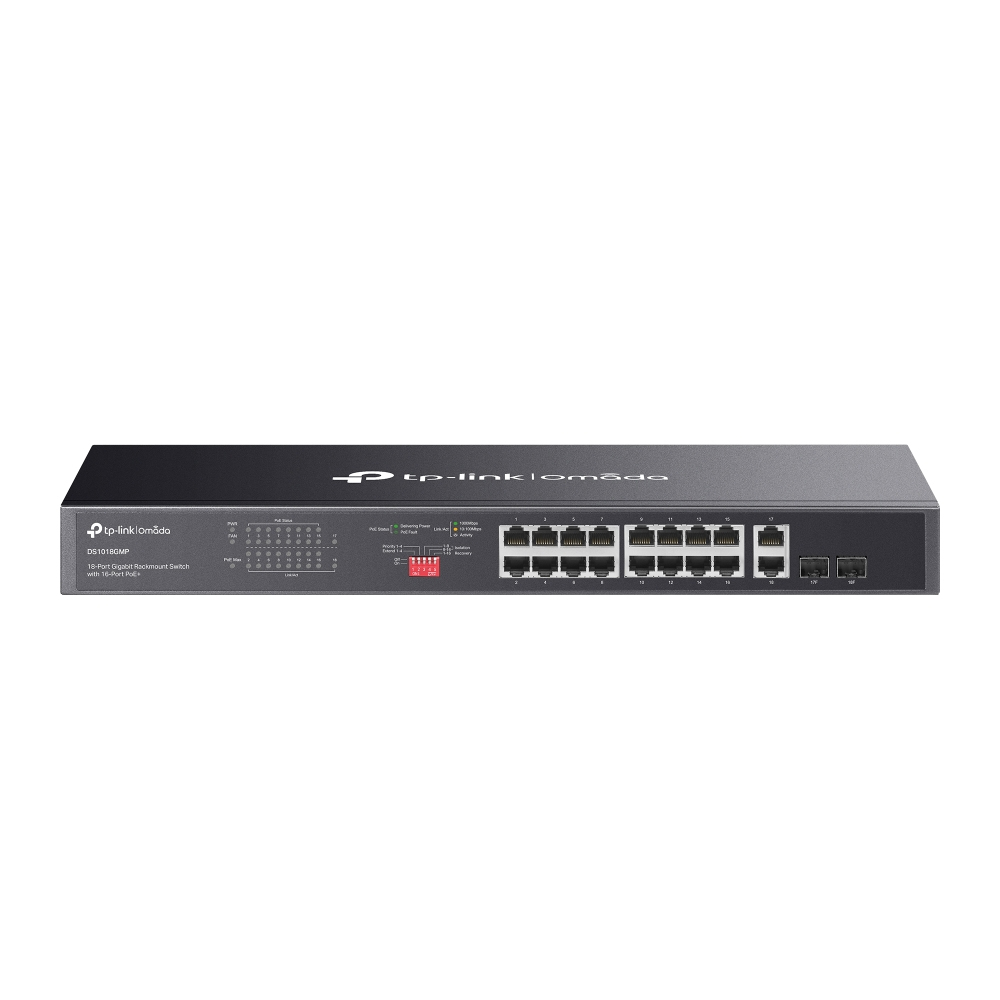

TP-LINK TL-SL1218MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

SKU

19_TL-SL1218MP_1

Be the first to review this product

$152.00

Visit our TP-LINK Store

MPN

TL-SL1218MP

UPC

845973099824

Easy to Use PoE Switch with Innovative Design

Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget

TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance

TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

Video Quality Guaranteed

Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
- 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
- Up to 250m data and power transmission under extend mode specially designed for surveillance system
- Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
- High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
- Easy to use, with no configuration and installation needed

Specifications

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	20
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	2
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Fast Ethernet (copper) ports quantity	16
Gigabit Ethernet (copper) ports quantity	2

Networking

Networking standards	IEEE 802.3af, IEEE 802.3at
10G support
Flow control support
Auto MDI/MDI-X

Data transmission

Switching capacity	7.2 Gbit/s
MAC address table	8000 entries
Jumbo frames support
Packet forwarding rate (1 Gbps)	5.36 pps
Jumbo frames	10

Security

MAC address filtering

Design

Rack mounting
Stackable
Product colour	Black
LED indicators	LAN, PoE, Status
Number of fans	2 fan(s)
Certification	RoHS, FCC

Performance

Packet buffer memory

4.1 MB

Power

Power consumption (typical)	18.7 W
AC input voltage	100 - 240 V
Power supply included
AC input frequency	50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity	1
Total Power over Ethernet (PoE) budget	192 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	5 - 90 %
Heat dissipation	741.15 BTU/h

Weight & dimensions

Width	440 mm (17.16 ")
Depth	180 mm (7.02 ")
Height	44 mm (1.72 ")

Packaging data

Package type

Box

Packaging content

Cables included	LAN (RJ-45)
Manual
